Model :
HLV2-24-3W Spot Light Illumination – Red
Model P/N :
GL-HLV2-24R-3W
Product Introduction

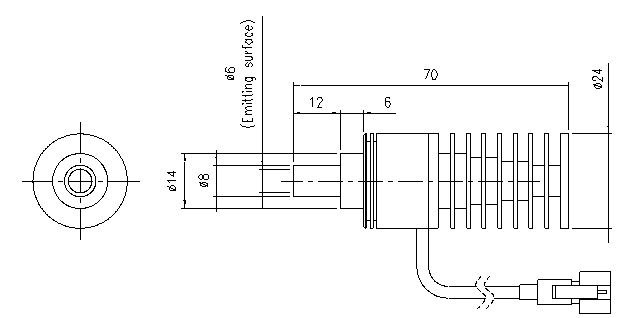

Dimensions
Material Aluminum (Main Part)
Surface Treatment Anodic Treatment (Black, Main Part)
Unit mm
Tolerance +-0.3
Connector Type J.S.T connector Sm type-3Pin
Connector Pin Def proimages/Lighting/HLV2-32/接腳圖.png

Note: Owing the different series of lights, the length of wires is about 25 - 30cm.

proimages/Lighting/HLV2-24-3W/尺寸圖.png
Guarantee

Under the normal use of the product, it will keep more than 80% of its initial brightness within a year from the date of delivery.

Specification
Input Voltage 700mA Tolerance: +-20mA
Max Power Consumption 3W LED consumption only
Operating Condition Temperature 0 - 40 C
Quantity of LEDs Humidity 20 - 80%RH
Cooling Method Natural Air Cooling
1 pieces
Specification of LED
proimages/Lighting/FDO/FDO100/光譜圖-紅.png
 proimages/Lighting/HLV2-32/照度圖.png
