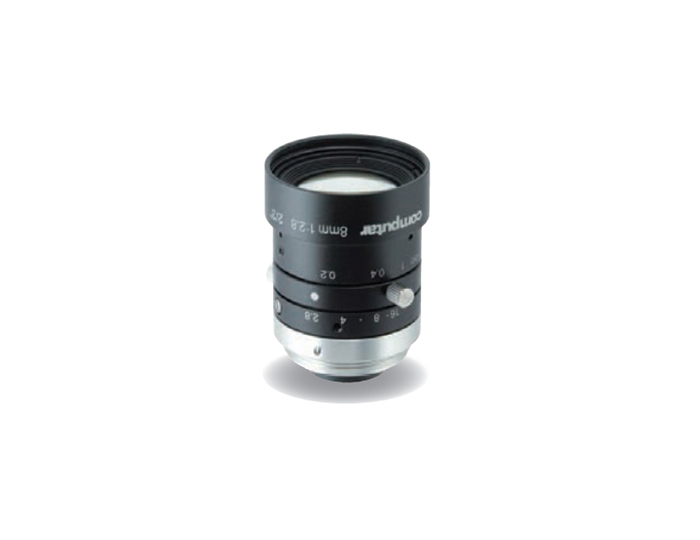

ALN-M0828-MPW3
產品介紹
Dimensions
| Focal Length | 8mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:2.8 | |||||||
| Max. Image Format | 8.8mm x 6.6mm (ø11mm) | |||||||
| Operation Range | Iris | F2.8-F16.0 | ||||||
| Focus | 0.1-Inf | |||||||
| Control | Iris | Manual | ||||||
| Focus | Manual | |||||||
| Angle of View | D | 2/3'' | 68.5° | 1/1.8'' | 57.7° | 1/2.5" | 47.2° | |
| H | 57.0° | 47.3° | 38.5° | |||||
| V | 44.2° | 37.5° | 29.4° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 2/3" | -1.80% | 1/2" | -1.68% | 1/2.5" | -1.28% | |
| Back Focal Length | 10.1mm | ||||||
| Flange Back Length | 17.526mm | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M72 P=0.75mm | ||||||
| Dimensions | ø32mm x 35.5mm | ||||||
| Weight | 58g | ||||||
Field of View
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 2/3'' | 1/1.8'' | 1/2.5" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.008 | - | 1099.4 | 820.0 | 896.0 | 668.7 | 706.4 | 530.9 |
| 900 | 0.009 | - | 990.8 | 739.0 | 807.5 | 602.6 | 636.6 | 478.4 |
| 800 | 0.010 | - | 882.2 | 657.9 | 719.0 | 536.5 | 566.8 | 425.9 |
| 700 | 0.012 | - | 773.7 | 576.9 | 630.4 | 470.4 | 497.0 | 373.5 |
| 600 | 0.014 | - | 665.1 | 495.9 | 541.9 | 404.3 | 427.1 | 321.0 |
| 500 | 0.016 | - | 556.5 | 414.9 | 453.4 | 338.2 | 357.3 | 268.5 |
| 450 | 0.018 | - | 502.3 | 374.4 | 409.2 | 305.2 | 322.4 | 242.3 |
| 400 | 0.020 | - | 448.0 | 333.9 | 364.9 | 272.2 | 287.6 | 216.1 |
| 350 | 0.023 | - | 393.7 | 293.3 | 320.6 | 239.1 | 252.6 | 189.8 |
| 300 | 0.027 | - | 339.4 | 252.8 | 276.3 | 206.0 | 217.7 | 163.5 |
| 250 | 0.032 | - | 285.1 | 212.2 | 232.1 | 173.0 | 182.8 | 137.3 |
| 200 | 0.039 | - | 230.8 | 171.8 | 187.8 | 139.9 | 147.9 | 111.1 |
| 150 | 0.051 | - | 176.5 | 131.3 | 143.5 | 106.9 | 113.0 | 84.8 |
| 100 | 0.074 | - | 122.2 | 90.7 | 99.3 | 73.9 | 78.1 | 58.6 |
