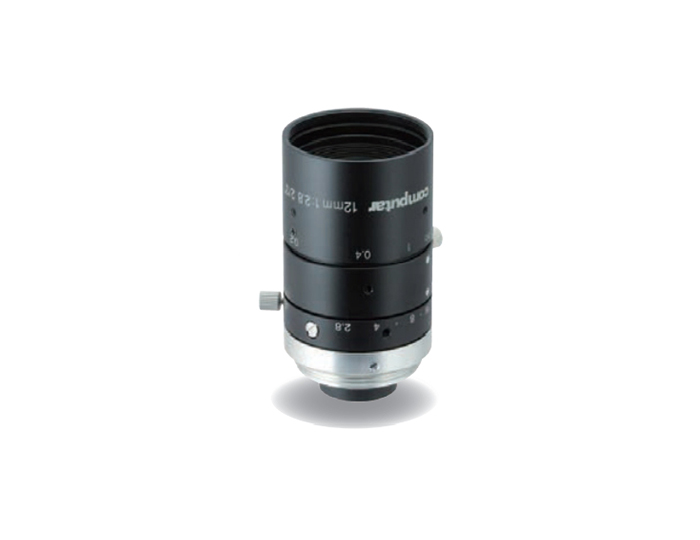

ALN-M1228-MPW3
產品介紹
Dimensions
| Focal Length | 12mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:2.8 | |||||||
| Max. Image Format | 8.8mm x 6.6mm (ø11mm) | |||||||
| Operation Range | Iris | F2.8-F16.0 | ||||||
| Focus | 0.1-Inf | |||||||
| Control | Iris | Manual | ||||||
| Focus | Manual | |||||||
| Angle of View | D | 2/3'' | 49.3° | 1/1.8'' | 40.8° | 1/2.5" | 33.0° | |
| H | 40.3° | 33.1° | 26.7° | |||||
| V | 30.8° | 26.0° | 20.3° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 2/3" | -0.10% | 1/2" | 0.04% | 1/2.5" | 0.00% | |
| Back Focal Length | 9.2mm | ||||||
| Flange Back Length | 17.526mm | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M27 P=0.75mm | ||||||
| Dimensions | ø29mm x 43.5mm | ||||||
| Weight | 60g | ||||||
Field of View
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 2/3'' | 1/1.8'' | 1/2.5" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.012 | - | 743.1 | 557.3 | 607.9 | 455.9 | 481.3 | 363.0 |
| 900 | 0.013 | - | 669.7 | 502.3 | 547.9 | 410.9 | 43.7 | 327.1 |
| 800 | 0.015 | - | 596.4 | 447.2 | 487.9 | 365.9 | 386.2 | 291.3 |
| 700 | 0.017 | - | 523.1 | 392.2 | 427.9 | 320.8 | 338.7 | 255.4 |
| 600 | 0.020 | - | 449.8 | 337.2 | 367.9 | 275.8 | 291.1 | 219.6 |
| 500 | 0.023 | - | 376.4 | 282.1 | 307.8 | 230.8 | 243.6 | 183.7 |
| 450 | 0.026 | - | 339.8 | 254.6 | 277.8 | 208.3 | 219.8 | 165.8 |
| 400 | 0.029 | - | 303.1 | 227.1 | 247.8 | 185.7 | 196.1 | 147.8 |
| 350 | 0.033 | - | 266.4 | 199.6 | 217.8 | 163.2 | 172.3 | 129.9 |
| 300 | 0.038 | - | 229.7 | 172.1 | 187.8 | 140.7 | 148.6 | 112.0 |
| 250 | 0.046 | - | 193.1 | 144.6 | 157.8 | 118.2 | 124.8 | 94.1 |
| 200 | 0.057 | - | 156.4 | 117.1 | 127.8 | 95.7 | 101.0 | 76.1 |
| 150 | 0.074 | - | 119.7 | 89.5 | 97.7 | 73.2 | 77.3 | 58.2 |
| 100 | 0.107 | - | 83.0 | 62.0 | 67.7 | 50.6 | 53.5 | 40.3 |
