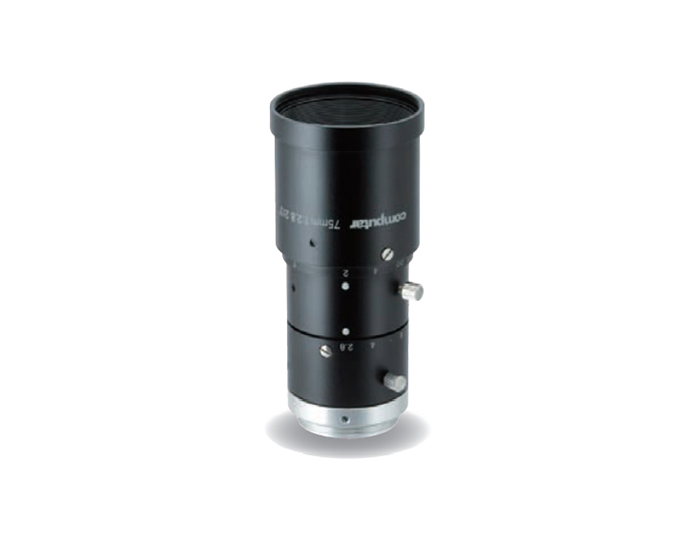

ALN-M7528-MPW3
產品介紹
Dimensions
| Focal Length | 75mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:2.8 | |||||||
| Max. Image Format | 8.8mm x 6.6mm (ø11mm) | |||||||
| Operation Range | Iris | F2.8-F16.0 | ||||||
| Focus | 0.4m-Inf | |||||||
| Control | Iris | Manual | ||||||
| Focus | Manual | |||||||
| Angle of View | D | 2/3'' | 8.4° | 1/1.8'' | 6.9° | 1/2.5" | 5.4° | |
| H | 6.7° | 5.5° | 4.3° | |||||
| V | 5.0° | 4.1° | 3.3° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 2/3" | 0.33% | 1/2" | 0.21% | 1/2.5" | 0.12% | |
| Back Focal Length | 14.6mm | ||||||
| Flange Back Length | 17.526mm | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M34 P=0.5mm | ||||||
| Dimensions | ø36mm x 75mm | ||||||
| Weight | 102g | ||||||
Field of View
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 2/3'' | 1/1.8'' | 1/2.5" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.071 | - | 123.1 | 92.3 | 100.7 | 75.5 | 79.7 | 60.1 |
| 900 | 0.079 | - | 111.4 | 83.5 | 91.1 | 68.3 | 72.1 | 54.4 |
| 800 | 0.088 | - | 99.7 | 74.7 | 81.5 | 61.1 | 64.5 | 48.7 |
| 700 | 0.100 | - | 87.9 | 65.9 | 71.9 | 53.9 | 56.9 | 43.0 |
| 600 | 0.116 | - | 76.2 | 57.1 | 62.4 | 46.7 | 49.3 | 37.2 |
| 500 | 0.13 | - | 64.5 | 48.4 | 52.8 | 39.6 | 41.8 | 31.5 |
| 450 | 0.150 | - | 58.7 | 44.0 | 48.0 | 36.0 | 38.0 | 28.6 |
| 400 | 0.167 | - | 52.8 | 39.6 | 43.2 | 32.4 | 34.2 | 25.8 |
| 350 | 0.188 | 1.5 | 46.9 | 35.2 | 38.4 | 28.8 | 30.4 | 22.9 |
| 300 | 0.215 | 3.5 | 41.1 | 30.8 | 33.6 | 25.2 | 26.6 | 20.0 |
| 250 | 0.251 | 6.0 | 35.2 | 26.4 | 28.8 | 21.6 | 22.8 | 17.2 |
| 200 | 0.301 | 10.0 | 29.3 | 22.0 | 24.0 | 18.0 | 19.0 | 14.3 |
| 150 | 0.377 | 16.0 | 23.5 | 17.6 | 19.2 | 14.4 | 15.2 | 11.4 |
| 100 | 0.503 | 25.0 | 17.6 | 13.2 | 14.4 | 10.8 | 11.4 | 8.6 |
