ALN-F1628-MPT
產品介紹

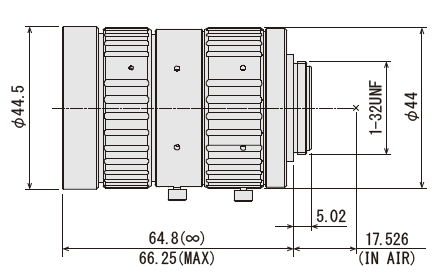

Dimensions
| Focal Length | 16mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:2.8 | |||||||
| Max. Image Format | 19.08mm x 13.03mm (ø23.1mm) | |||||||
| Operation Range | Iris | F2.8-F16.0 | ||||||
| Focus | 0.15m-Inf. | |||||||
| Control | Iris | Manual | ||||||
| Focus | Manual | |||||||
| Angle of View | D | 1.4'' | 70.1° | 1.2'' | 61.0° | 1.1" | 56.5° | |
| H | 60.4° | 48.1° | 46.9° | |||||
| V | 43.4° | 42.2° | 35.2° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 1.4" | 0.06 | 1.2" | -0.43 | 1.1" | -0.54 | |
| Back Focal Length | 12.7mm | ||||||
| Flange Back Length | 17.526mm | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M52 P=0.75mm (with VM0811)* | ||||||
| Dimensions | ø44.5mm x 64.8mm | ||||||
| ø54mm x 66.4mm(with TM-1643) | |||||||
| Weight | 187g | ||||||
