ALN-F3526-MPT
產品介紹

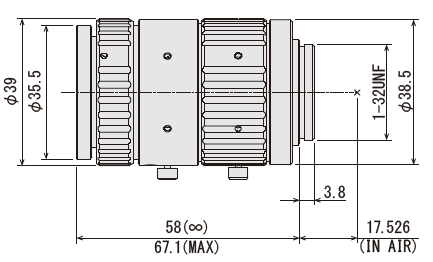

Dimensions
| Focal Length | 35mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:2.6 | |||||||
| Max. Image Format | 19.08mm x 13.03mm (ø23.1mm) | |||||||
| Operation Range | Iris | F2.6-F16.0 | ||||||
| Focus | 0.15m-Inf | |||||||
| Control | Iris | Manual | ||||||
| Focus | Manual | |||||||
| Angle of View | D | 1.4'' | 36.6° | 1.2'' | 30.9° | 1.1" | 28.3° | |
| H | 30.6° | 23.6° | 23.0° | |||||
| V | 21.1° | 20.5° | 16.9° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 1.4" | 0.01 | 1.2" | -0.05 | 1.1" | -0.06 | |
| Back Focal Length | 23.1mm | ||||||
| Flange Back Length | 17.526mm | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M34 P=0.5mm | ||||||
| Dimensions | ø39mm x 58mm | ||||||
| Weight | 122g | ||||||
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 1.4'' | 1.2'' | 1.1" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.035 | - | 540.3 | 369.0 | 413.5 | 357.6 | 401.8 | 293.9 |
| 900 | 0.039 | - | 485.7 | 331.7 | 371.7 | 321.5 | 361.3 | 264.2 |
| 800 | 0.044 | - | 431.1 | 294.5 | 330.0 | 285.4 | 320.7 | 234.5 |
| 700 | 0.051 | - | 376.6 | 257.2 | 288.2 | 249.3 | 280.1 | 204.9 |
| 600 | 0.059 | - | 322.0 | 219.9 | 246.5 | 213.2 | 239.5 | 175.2 |
| 500 | 0.071 | - | 267.5 | 182.7 | 204.7 | 177.1 | 199.0 | 145.5 |
| 450 | 0.080 | - | 240.2 | 164.1 | 183.8 | 159.0 | 178.7 | 130.7 |
| 400 | 0.090 | - | 212.9 | 145.4 | 163.0 | 141.0 | 158.4 | 115.8 |
| 350 | 0.103 | - | 185.6 | 126.8 | 142.1 | 122.9 | 138.1 | 101.0 |
| 300 | 0.121 | - | 158.3 | 108.2 | 121.2 | 104.9 | 117.8 | 86.2 |
| 250 | 0.146 | - | 131.1 | 89.5 | 100.3 | 86.8 | 97.5 | 71.3 |
| 200 | 0.184 | - | 103.8 | 70.9 | 79.5 | 68.7 | 77.2 | 566.5 |
| 150 | 0.249 | - | 76.5 | 52.3 | 58.6 | 50.7 | 56.9 | 41.7 |
| 100 | 0.387 | 2.6 | 49.3 | 33.7 | 37.7 | 32.7 | 36.7 | 26.9 |
