ALN-M1618-APVSW
產品介紹
Specification
| Focal Length | 16mm | ||||||
|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:1.8 | ||||||
| Max. Image Format | 8.8mm x 6.6mm(ø11mm) | ||||||
| Wavelength Range | 400nm-1700nm | ||||||
| Operation Range | Iris | F1.8-F16.0 | |||||
| Focus | 0.1m- Inf. | ||||||
| Control | Iris | Manual | |||||
| Focus | Manual | ||||||
| Angle of View | D | IMX990 6.40mm x 5.12mm |
28.8° | IMX991 3.20mm x 2.56mm |
14.6° | 2/3" | 37.9° |
| H | 22.7° | 11.4° | 30.9° | ||||
| V | 18.2° | 9.2° | 23.4° | ||||
| Operating Temperature | -10°C-+50°C | ||||||
| Optical Distortion | 2/3" | 0.0% | 1/2" | -0.3% |
|---|---|---|---|---|
| Back Focal Length | 14.2mm | |||
| Flange Back Length | 17.526mm | |||
| Mount | C-Mount | |||
| Filter Size | M37.5 P=0.5mm | |||

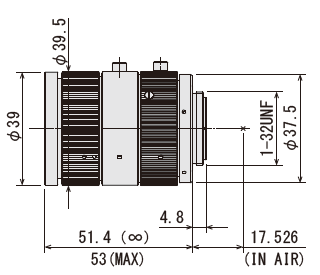

| Dimensions | ø39.5mm x 52.0mm | |||
| Weight | 136g | |||
Field of View
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 2/3'' | IMX990 | IMX991 | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.016 | - | 565.1 | 423.1 | 410.2 | 327.7 | 204.5 | 163.5 |
| 900 | 0.017 | - | 509.4 | 381.3 | 369.7 | 295.4 | 184.3 | 147.4 |
| 800 | 0.020 | - | 453.8 | 339.6 | 329.3 | 263.1 | 164.1 | 131.2 |
| 700 | 0.022 | - | 398.7 | 298.4 | 289.2 | 231.1 | 144.2 | 115.3 |
| 600 | 0.026 | - | 343.6 | 257.1 | 249.2 | 199.1 | 124.2 | 99.3 |
| 500 | 0.031 | - | 288.5 | 215.7 | 209.1 | 167.0 | 104.2 | 83.3 |
| 450 | 0.034 | - | 260.9 | 195.1 | 189.1 | 151.0 | 94.2 | 75.3 |
| 400 | 0.038 | - | 233.3 | 174.4 | 169.0 | 135.0 | 84.2 | 67.3 |
| 350 | 0.043 | - | 205.6 | 153.6 | 148.9 | 118.9 | 74.1 | 59.3 |
| 300 | 0.050 | - | 178.4 | 133.2 | 129.1 | 103.1 | 64.3 | 51.4 |
| 250 | 0.059 | - | 151.5 | 113.0 | 109.5 | 87.4 | 54.5 | 43.6 |
| 200 | 0.072 | - | 123.4 | 92.0 | 89.2 | 71.1 | 44.3 | 35.4 |
| 190 | 0.076 | - | 117.9 | 87.8 | 85.1 | 67.9 | 42.3 | 33.8 |
| 180 | 0.080 | - | 112.3 | 83.7 | 81.1 | 64.7 | 40.3 | 32.2 |
| 170 | 0.084 | - | 106.8 | 79.5 | 77.1 | 61.5 | 38.3 | 30.6 |
| 160 | 0.089 | - | 101.2 | 75.4 | 73.0 | 58.3 | 36.3 | 29.0 |
| 150 | 0.094 | - | 95.7 | 71.2 | 69.0 | 55.0 | 34.3 | 27.4 |
| 140 | 0.100 | - | 90.1 | 67.1 | 65.0 | 51.8 | 32.3 | 25.8 |
| 130 | 0.106 | - | 84.6 | 62.9 | 61.0 | 48.6 | 30.2 | 24.2 |
| 120 | 0.114 | - | 79.0 | 58.8 | 56.9 | 45.4 | 28.2 | 22.6 |
| 110 | 0.122 | - | 73.5 | 54.6 | 52.9 | 42.2 | 26.2 | 21.0 |
| 100 | 0.133 | - | 68.0 | 50.5 | 48.9 | 39.0 | 24.2 | 19.4 |
