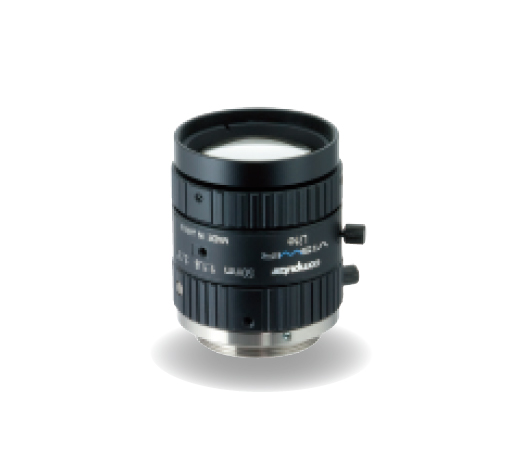

ALN-M5018-VSW
產品介紹
Specification
| Focal Length | 50mm | ||||||
|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:1.8 | ||||||
| Max. Image Format | 8.8mm x 6.6mm(ø11mm) | ||||||
| Wavelength Range | 400nm-1700nm | ||||||
| Operation Range | Iris | F1.4-16C | |||||
| Focus | 0.5m- Inf. | ||||||
| Control | Iris | Manual | |||||
| Focus | Manual | ||||||
| Angle of View | D | IMX990 6.40mm x 5.12mm |
9.8° | IMX991 3.20mm x 2.56mm |
4.9° | 2/3" | 13.1° |
| H | 7.6° | 3.8° | 10.5° | ||||
| V | 6.1° | 3.1° | 7.9° | ||||
| Operating Temperature | -10°C-+50°C | ||||||
| Optical Distortion | 2/3" | -0.3% | 1/2" | -0.2% |
|---|---|---|---|---|
| Back Focal Length | 13.1mm | |||
| Flange Back Length | 17.526mm | |||
| Mount | C-Mount | |||
| Filter Size | M30.5 P=0.5mm | |||

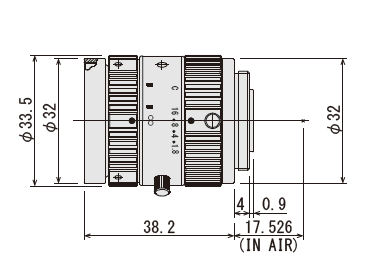

| Dimensions | ø33.5mm x 38.2mm | |||
| Weight | 85g | |||
Field of View
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||
|---|---|---|---|---|---|---|
| 2/3'' | 1/2'' | |||||
| (mm) | (mm) | H | V | H | V | |
| 900 | 0.055 | - | 160.8 | 120.4 | 116.7 | 87.5 |
| 800 | 0.062 | - | 142.4 | 106.6 | 103.4 | 77.5 |
| 700 | 0.071 | - | 124.0 | 92.9 | 90.0 | 67.5 |
| 600 | 0.084 | - | 105.6 | 79.1 | 76.7 | 57.5 |
| 500 | 0.101 | - | 87.3 | 65.3 | 63.3 | 47.5 |
| 450 | 0.113 | 0.5 | 78.1 | 58.4 | 56.7 | 42.5 |
| 400 | 0.128 | 1.5 | 68.9 | 51.6 | 50.0 | 37.5 |
| 350 | 0.148 | 2.5 | 59.7 | 44.7 | 43.3 | 32.5 |
| 300 | 0.175 | 3.5 | 50.5 | 37.8 | 36.6 | 27.4 |
| 250 | 0.214 | 5.5 | 41.3 | 30.9 | 30.0 | 22.4 |
| 200 | 0.276 | 8.5 | 32.1 | 24.0 | 23.3 | 17.4 |
| 150 | 0.387 | 14.0 | 22.9 | 17.1 | 16.6 | 12.4 |
| 100 | 0.647 | 26.5 | 13.6 | 10.2 | 9.9 | 7.4 |
