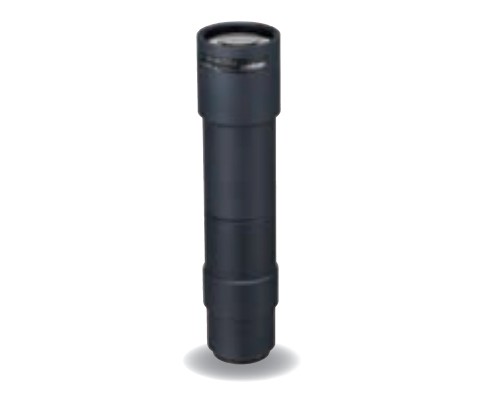

ALN-TEC-V10110MPW
產品介紹
Specification
| Format | 12.8mm x 9.6mm(ø16.0mm) | ||||||
|---|---|---|---|---|---|---|---|
| Magnification | 1.0x | ||||||
| Working Distance | 110.2mm | ||||||
| Resolving Power*1 | 6μm | ||||||
| Depth of Field*2 |
0.72mm | ||||||
| NA | 0.055 | ||||||
| Effective F-number | 9.0 | ||||||
| TV Distortion | -0.015% | ||||||
| Mount | C-Mount | ||||||
| Weight | 159g | ||||||
*2: Value Calculated with a permissible circle of confusion of 40μm
Field of View and Size
| 1" | 12.8 x 9.6mm | |||
| 2/3" | 8.8 x 6.6mm | |||
| 1/1.8" | 7.2 x 5.4mm | |||
| 1/2" | 6.4 x 4.8mm | |||
