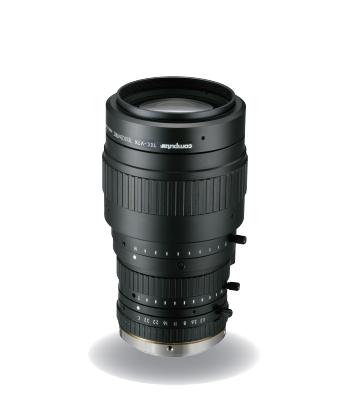

Telecentric Macro Lens 1.1" 5MP Zoom
產品介紹
Specification
| Focal Length | N/A | ||||||
|---|---|---|---|---|---|---|---|
| Magnification | 0.07x - 0.5x | ||||||
| Max. Aperture Ratio | 1:4.3 | ||||||
| Max. Image Format | 12.3 mm x 12.3mm (ø17.4mm) | ||||||
| Operation Range | Iris | F4.3-F32 | |||||
| Focus | 182mm - 557.2mm | ||||||
| Control | Iris | Manual | |||||
| Focus | Manual | ||||||
| Zoom | Manual | ||||||
| Operating Temperature | -10°C - 50°C | ||||||
| Optical Distortion | 1.1" | 1.0% | 1" | 0.84% | 2/3" | 0.39% |
|---|---|---|---|---|---|---|
| -1.7% | -1.45% | -0.7% | ||||
| Back Focal Length | Tele | 39.53mm | ||||
| Wide | 49.78mm | |||||
| Flange Back Length | 17.526mm | |||||
| Mount | C-Mount | |||||
| Filter Size | M62 P=0.75mm | |||||

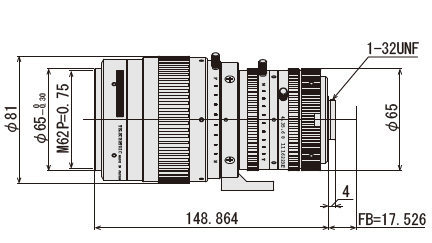

| Dimensions | ø61mm x 152.86mm | |||||
| Weight | 1400g | |||||
Field of View
| Working Distance | Optical Magnification | Field of View(mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.1'' | 1'' | 2/3" | |||||||||
| (mm) | H | V | D | H | V | D | H | V | D | ||
182 |
Wide | 0.2525 | 48.74 | 48.74 | 69.12 | 50.32 | 38.6 | 63.28 | 34.88 | 26.16 | 43.6 |
| Middle | 0.3643 | 33.64 | 33.64 | 47.33 | 34.72 | 26.3 | 43.6 | 24.12 | 18.1 | 30.11 | |
| Tele | 0.5 | 24.6 | 24.6 | 34.75 | 25.4 | 19.246 | 31.88 | 17.65 | 13.26 | 22 | |
| 200 | Wide | 0.2258 | 54.52 | 54.62 | 76.94 | 56.3 | 42.56 | 70.84 | 39 | 29.24 | 48.76 |
| Middle | 0.3258 | 37.62 | 37.62 | 52.95 | 38.83 | 29.4 | 48.78 | 26.96 | 20.24 | 33.67 | |
| Tele | 0.4451 | 27.5 | 27.5 | 38.68 | 28.38 | 21.51 | 35.64 | 19.72 | 14.81 | 24.62 | |
| 300 | Wide | 0.1413 | 87.48 | 87.48 | 124.06 | 90.34 | 68.18 | 114.1 | 62.46 | 46.8 | 78.178 |
| Middle | 0.2037 | 60.24 | 60.24 | 85.34 | 62.18 | 47.06 | 78.18 | 42.15 | 32.38 | 53.898 | |
| Tele | 0.2784 | 44 | 44 | 61.94 | 45.42 | 34.3 | 57.46 | 31.55 | 23.69 | 39.38 | |
| 400 | Wide | 0.1037 | 119.47 | 119.47 | 169.98 | 123.4 | 93.02 | 156.05 | 85.2 | 63.82 | 106.71 |
| Middle | 0.1495 | 82.15 | 82.15 | 115.97 | 84.8 | 64.16 | 106.72 | 58.82 | 44.12 | 73.48 | |
| Tele | 0.2042 | 59.99 | 59.99 | 84.52 | 61.92 | 46.89 | 77.82 | 43 | 32.28 | 53.7 | |
| 500 | Wide | 0.082 | 151.25 | 151.25 | 215.44 | 156.25 | 117.67 | 197.8 | 107.78 | 80.68 | 135.04 |
| Middle | 0.1183 | 103.92 | 103.92 | 146.82 | 107.28 | 81.12 | 135 | 74.37 | 55.78 | 92.94 | |
| Tele | 0.1617 | 75.84 | 75.84 | 106.89 | 78.29 | 59.28 | 98.4 | 54.36 | 40.8 | 67.88 | |
| 577.5 | Wide | 0.0708 | 175.21 | 175.21 | 250.66 | 181.4 | 136.35 | 229.82 | 125.08 | 93.62 | 156.76 |
| Middle | 0.102 | 120.57 | 120.57 | 170.44 | 124.47 | 94.0 | 156.74 | 86.28 | 64.72 | 107.84 | |
| Tele | 0.1398 | 87.99 | 87.99 | 124.04 | 90.8 | 68.75 | 114.16 | 63.06 | 47.32 | 78.74 | |
