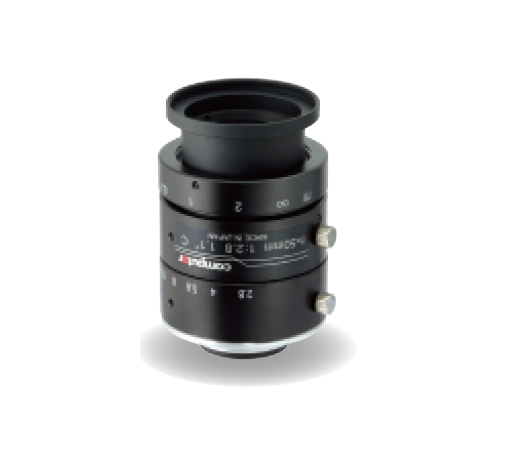

ALN-V5028-MPY
產品介紹

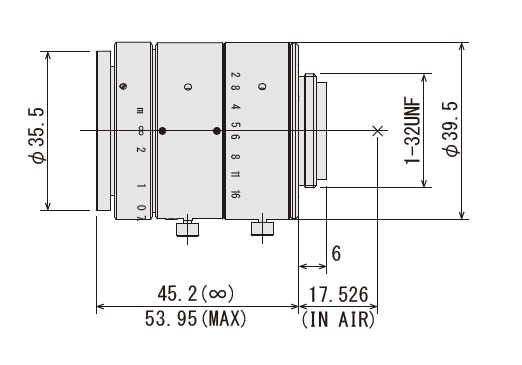

Dimensions
| Focal Length | 50mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:2.8 | |||||||
| Max. Image Format | 14.2mm x 10.4mm (ø17.6mm) | |||||||
| Operation Range | Iris | F2.8-F16.0 | ||||||
| Focus | 0.5m-Inf | |||||||
| Control | Iris | Manual | ||||||
| Focus | Manual | |||||||
| Angle of View | D | 1.1'' | 20.0° | 1'' | 18.2° | 2/3" | 12.6° | |
| H | 16.2° | 14.6° | 10.1° | |||||
| V | 11.9° | 11.0° | 7.6° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 1.1" | 0.1% | 1" | 0.1% | 2/3" | 0.1% | |
| Back Focal Length | 11.9mm | ||||||
| Flange Back Length | 17.526mm | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M34.0 P=0.5mm | ||||||
| Dimensions | ø39.5mm x 45.1mm | ||||||
| Weight | 107g | ||||||
Field of View
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 1.1'' | 1'' | 2/3" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.055 | - | 257.9 | 188.9 | 232.5 | 174.4 | 159.8 | 119.9 |
| 900 | 0.062 | - | 229.5 | 168.1 | 206.9 | 155.1 | 142.2 | 106.7 |
| 800 | 0.071 | - | 201.1 | 147.2 | 181.2 | 135.9 | 124.6 | 93.4 |
| 700 | 0.082 | - | 172.7 | 126.4 | 155.6 | 116.7 | 107.0 | 80.2 |
| 600 | 0.099 | - | 144.2 | 105.6 | 130.0 | 97.5 | 89.4 | 67.0 |
| 500 | 0.123 | - | 115.9 | 84.8 | 104.4 | 78.3 | 71.8 | 53.8 |
| 450 | 0.138 | 1.0 | 103.1 | 75.4 | 92.9 | 69.6 | 63.8 | 47.9 |
| 400 | 0.158 | 2.0 | 89.9 | 65.8 | 81.0 | 60.7 | 55.7 | 41.7 |
| 350 | 0.181 | 5.0 | 78.5 | 57.4 | 70.7 | 53.0 | 48.6 | 36.4 |
| 300 | 0.222 | 6.0 | 64.2 | 47.0 | 57.8 | 43.3 | 39.7 | 29.8 |
| 250 | 0.276 | 10.0 | 51.7 | 37.8 | 46.6 | 34.9 | 32.0 | 24.0 |
| 200 | 0.373 | 15.0 | 38.2 | 27.9 | 34.4 | 25.8 | 23.6 | 17.7 |
| 150 | 0.583 | 25.0 | 24.5 | 17.9 | 22.1 | 16.5 | 15.1 | 11.3 |
| 100 | 1.255 | 61.5 | 11.3 | 8.3 | 10.2 | 7.7 | 7.0 | 5.3 |
