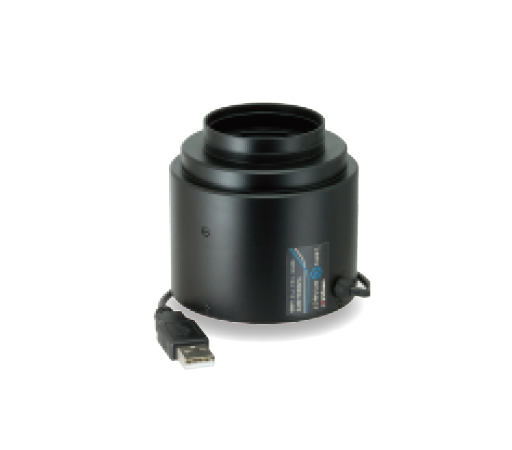

ALN-VL5024U-MPZ
產品介紹
Dimensions
| Focal Length | 50mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:2.4 | |||||||
| Max. Image Format | 12.8mm x 9.6mm (ø16mm) | |||||||
| Operation Range | Iris | F2.4-F16.0 | ||||||
| Focus | 0.2m-Inf | |||||||
| Control | Iris | Motorized | ||||||
| Focus | Motorized | |||||||
| Angle of View | D | 1'' | 18.2° | 2/3'' | 12.6° | 1/1.8" | 10.3° | |
| H | 14.6° | 10.1° | 8.3° | |||||
| V | 11.0° | 7.6° | 6.2° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 1" | 0.0% | 2/3" | 0.0% | 1/1.8" | 0.0% | |
| Back Focal Length | 11.1mm (In Air) | ||||||
| Flange Back Length | 17.526mm (In Air) | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M43 P=0.75mm | ||||||
| Weight | 326g | ||||||
| Control Interface | USB 2.0 | ||||||
| Power mode | Bus Powerd (500mA) | ||||||
| Connector | USB TypeA | ||||||
Field of View
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 1'' | 2/3'' | 1/1.8" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.053 | - | 245.9 | 184.4 | 169.0 | 126.8 | 138.3 | 103.8 |
| 900 | 0.059 | - | 220.3 | 165.2 | 151.4 | 113.6 | 123.9 | 93.0 |
| 800 | 0.066 | - | 194.7 | 146.0 | 133.8 | 100.4 | 109.5 | 82.1 |
| 700 | 0.076 | - | 169.2 | 126.9 | 116.3 | 87.2 | 95.1 | 71.4 |
| 600 | 0.090 | - | 143.5 | 107.6 | 98.6 | 74.0 | 80.7 | 60.5 |
| 500 | 0.109 | - | 118.0 | 88.5 | 81.1 | 60.8 | 66.4 | 49.8 |
| 450 | 0.122 | - | 105.1 | 78.8 | 72.2 | 54.2 | 59.1 | 44.3 |
| 400 | 0.139 | - | 92.3 | 69.2 | 63.4 | 47.6 | 51.9 | 38.9 |
| 350 | 0.162 | - | 79.5 | 59.6 | 54.6 | 41.0 | 44.7 | 33.5 |
| 300 | 0.193 | - | 66.7 | 50.0 | 45.8 | 34.4 | 37.5 | 28.1 |
| 250 | 0.239 | - | 53.8 | 40.4 | 37.0 | 27.8 | 30.3 | 22.7 |
| 200 | 0.313 | - | 41.0 | 30.8 | 28.2 | 21.2 | 23.1 | 17.3 |
| 150 | 0.455 | 8.5 | 28.2 | 21.2 | 19.4 | 14.6 | 15.9 | 11.9 |
| 100 | 0.835 | 30.0 | 15.4 | 11.6 | 10.6 | 8.0 | 8.7 | 6.5 |
