ALN-VL7531U-MPZ
產品介紹

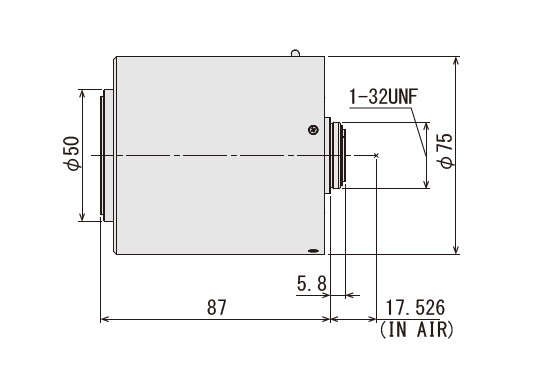

Dimensions
| Focal Length | 75mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:3.1 | |||||||
| Max. Image Format | 12.8mm x 9.6mm (ø16mm) | |||||||
| Operation Range | Iris | F3.1-F16.0 | ||||||
| Focus | 0.25m-Inf | |||||||
| Control | Iris | Motorized | ||||||
| Focus | Motorized | |||||||
| Angle of View | D | 1'' | 12.2° | 2/3'' | 8.4° | 1/1.8" | 6.9° | |
| H | 9.8° | 6.7° | 5.5° | |||||
| V | 7.3° | 5.0° | 4.1° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 1" | 0.0% | 2/3" | 0.0% | 1/1.8" | 0.0% | |
| Back Focal Length | 12.0mm (In Air) | ||||||
| Flange Back Length | 17.526mm (In Air) | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M43 P=0.5mm | ||||||
| Weight | 415g | ||||||
| Control Inferface | USB2.0 | ||||||
| Power mode | Bus Powerd (500mA) | ||||||
| Connector | USB TypeA | ||||||
Field of View
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 1'' | 2/3'' | 1/1.8" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.077 | - | 166.9 | 125.2 | 114.8 | 86.1 | 93.9 | 70.4 |
| 900 | 0.086 | - | 149.8 | 112.4 | 103.0 | 77.3 | 84.3 | 63.2 |
| 800 | 0.097 | - | 132.8 | 99.6 | 91.3 | 68.5 | 74.7 | 56.0 |
| 700 | 0.111 | - | 115.7 | 86.8 | 79.6 | 59.7 | 65.1 | 48.8 |
| 600 | 0.130 | - | 98.6 | 74.0 | 67.8 | 50.9 | 55.5 | 41.6 |
| 500 | 0.158 | - | 81.6 | 61.2 | 56.1 | 42.1 | 45.9 | 34.4 |
| 450 | 0.176 | - | 73.0 | 54.8 | 50.2 | 37.7 | 41.1 | 30.8 |
| 400 | 0.199 | - | 64.5 | 48.4 | 44.4 | 33.3 | 36.3 | 27.2 |
| 350 | 0.229 | - | 56.0 | 42.0 | 38.5 | 28.9 | 31.5 | 23.6 |
| 300 | 0.271 | - | 47.4 | 35.6 | 32.6 | 24.5 | 26.7 | 20.0 |
| 250 | 0.330 | - | 38.9 | 29.2 | 26.8 | 20.1 | 21.9 | 16.4 |
| 200 | 0.425 | 7.0 | 30.2 | 22.7 | 20.8 | 15.6 | 17.0 | 12.8 |
| 150 | 0.598 | 19.5 | 21.5 | 16.1 | 14.8 | 11.1 | 12.1 | 9.1 |
| 100 | 1.009 | 50.0 | 12.8 | 9.6 | 8.8 | 6.6 | 7.2 | 5.4 |
