4 Divisional ring Lights 4 Divisional ring Lights
INQUIRYSeries Specifications
| 4 Divisional ring Lights | Model | Color | Dimensions | Material /Surface Treatment |
Connector Type | Connector Pin Def. | Working Voltage | Energy Consumption | Spectrum | |
|---|---|---|---|---|---|---|---|---|---|---|
| GL-DR6736B4 | Blue |  Tolerance range: +-0.3 |
Aluminum /Anodic Treatment Black |
J.S.T connector SM type-2Pin |  |
DC 12V Tolerance: +-0.1V |
4.75W | 465nm |
||
| GL-DR6746B4 |  Tolerance range: +-0.3 |
DC 8.4 - 12.0V Tolerance: +-0.1V |
2.784W | |||||||

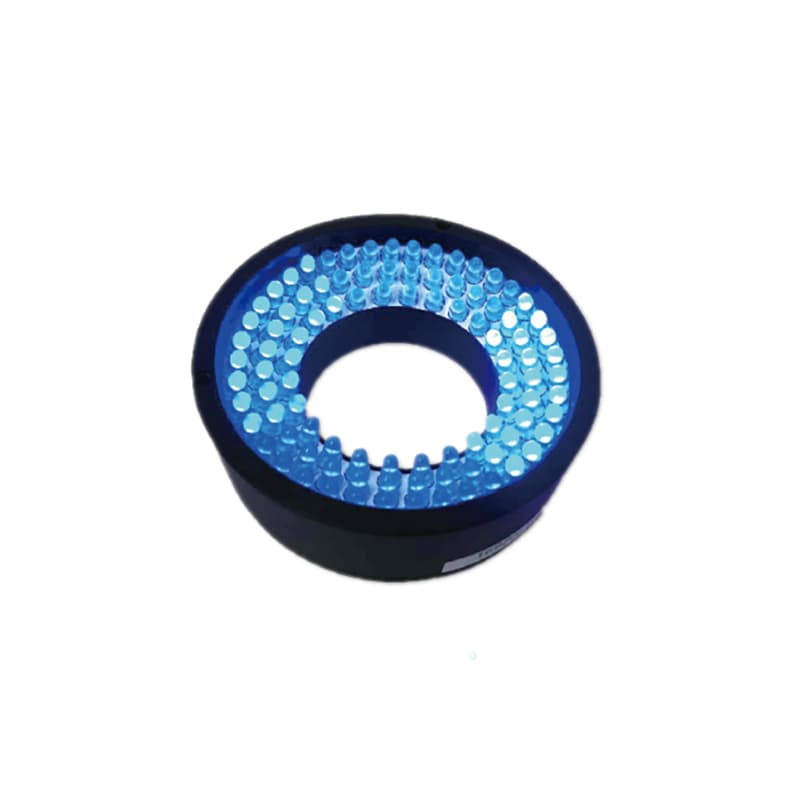

| GL-DR-9050B4 |  Tolerance range: +-0.3 |
11.52W | ||||||||

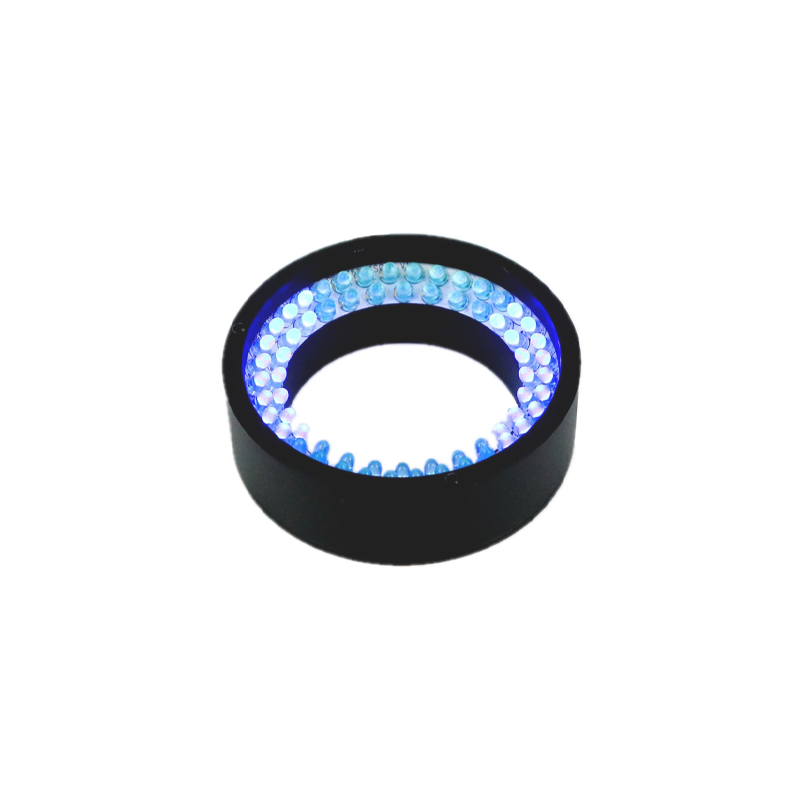

| GL-DR2-9050B4 |  Tolerance range: +-0.3 |
DC 12V Tolerance: +-0.1V |
10.36W | |||||||
Illuminance Curve & Brightness Distribution

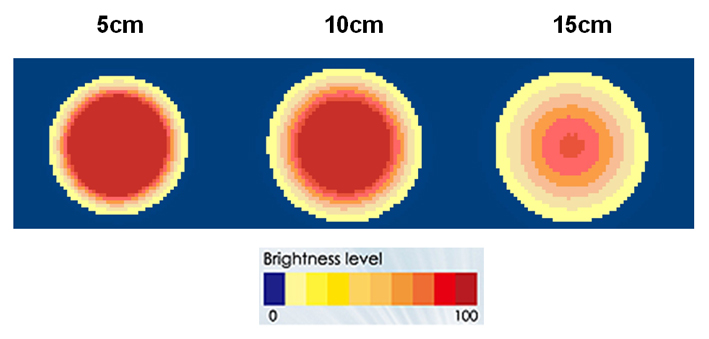

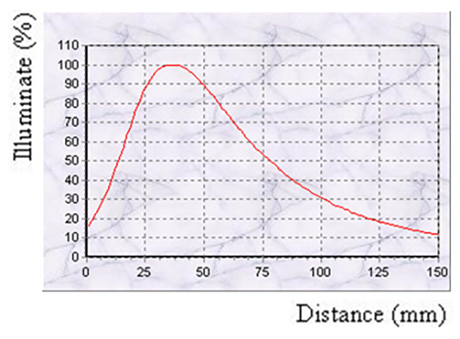

GL-DR6746B4

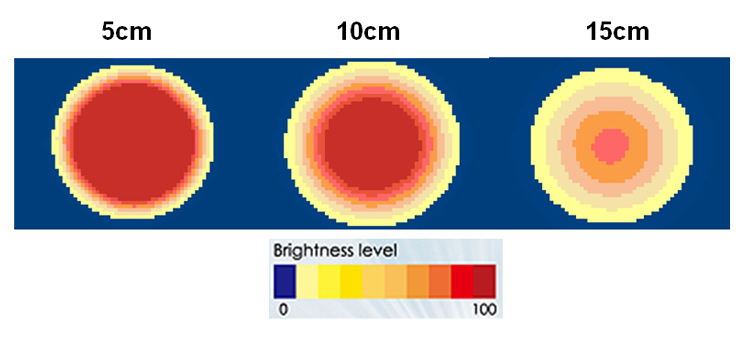

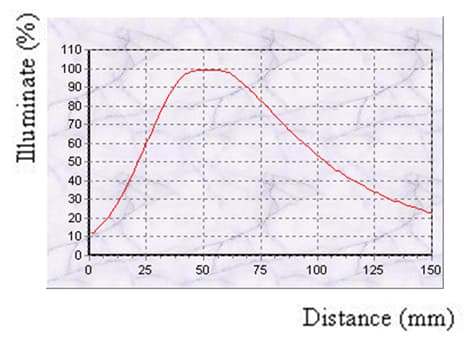

GL-DR-9050B4

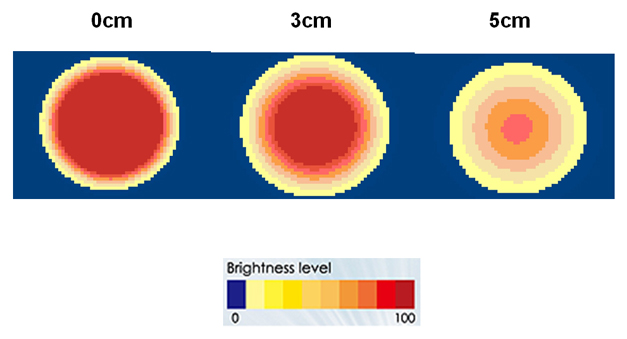

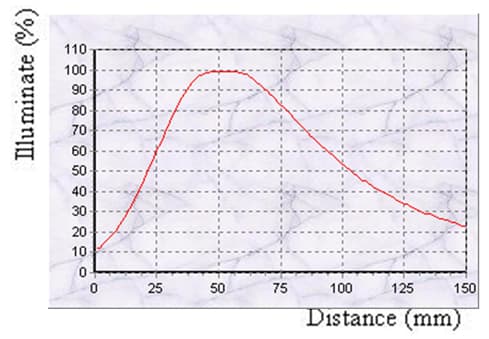

GL-DR2-9050B4
