GL-DR9050 Series Ring Lights (0°/15°/30°)
INQUIRY系列規格
| GL-DR9050 Series Direct Ring Illumination |

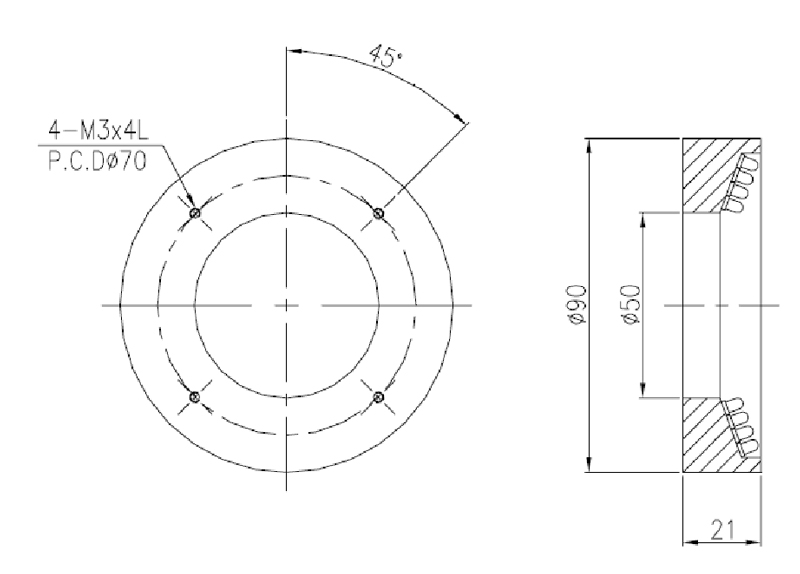

Model | Color | Dimensions | Material /Surface Treatment |
Connector Type | Connector Pin Def. | Working Voltage | Energy Consumption | Spectrum | |
|---|---|---|---|---|---|---|---|---|---|---|
| GL-DR9050R-24 | Red |  Tolerance range: +-0.3 |
Aluminum /Anodic Treatment Black |
J.S.T connector SM type-3Pin |  |
DC 24V Tolerance: +-0.1V |
7.7W | 625nm |
||

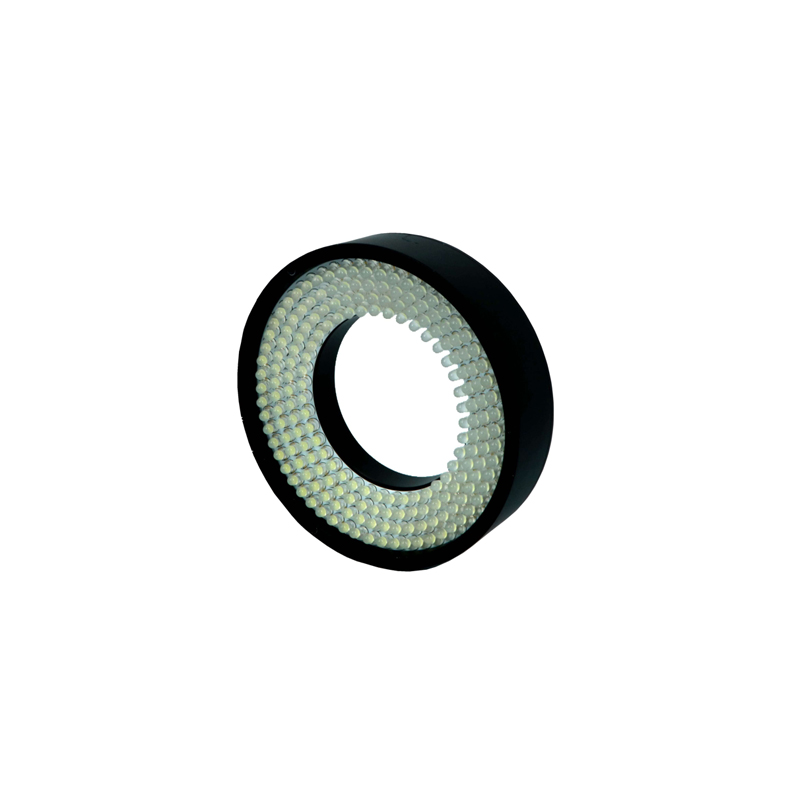

| GL-DR9050W-24 | White | 11.6W | 5500K |
|||||||

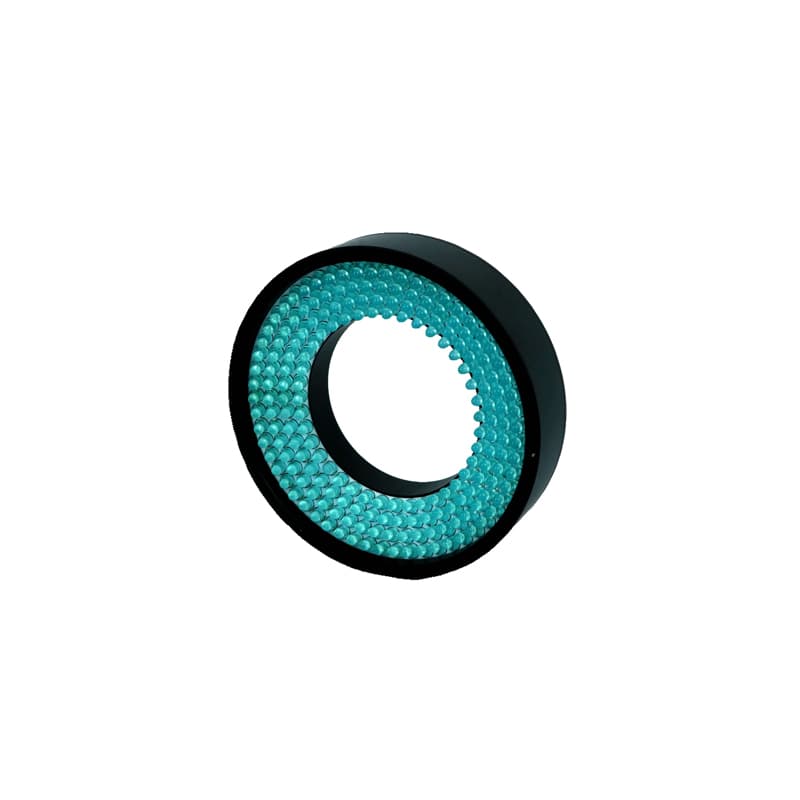

| GL-DR9050B-24 | Blue | 11.6W | 465nm |
|||||||

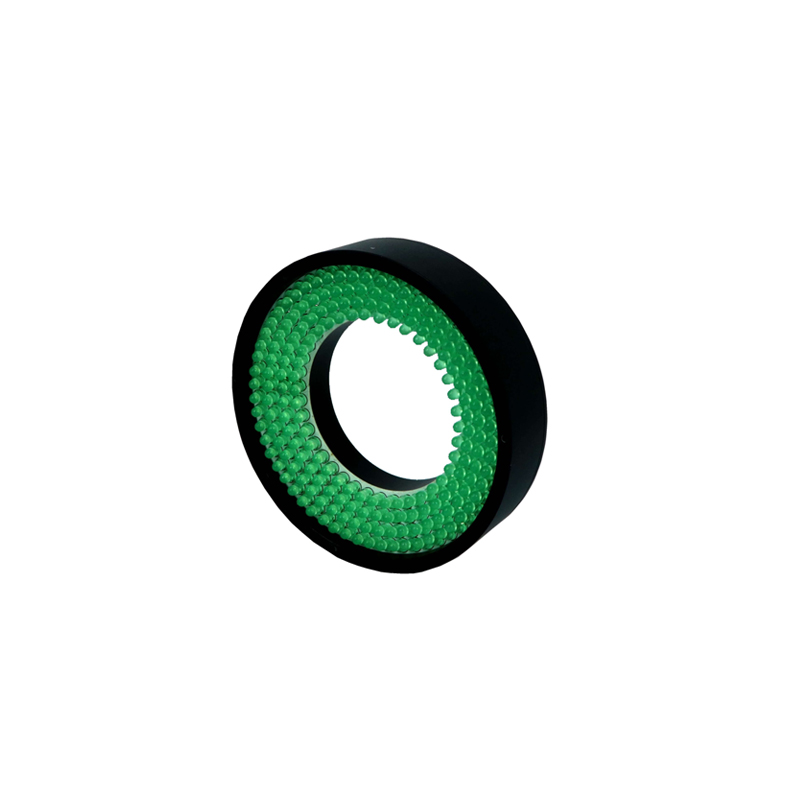

| GL-DR9050G-24 | Green | 11.6W | 525nm |
|||||||

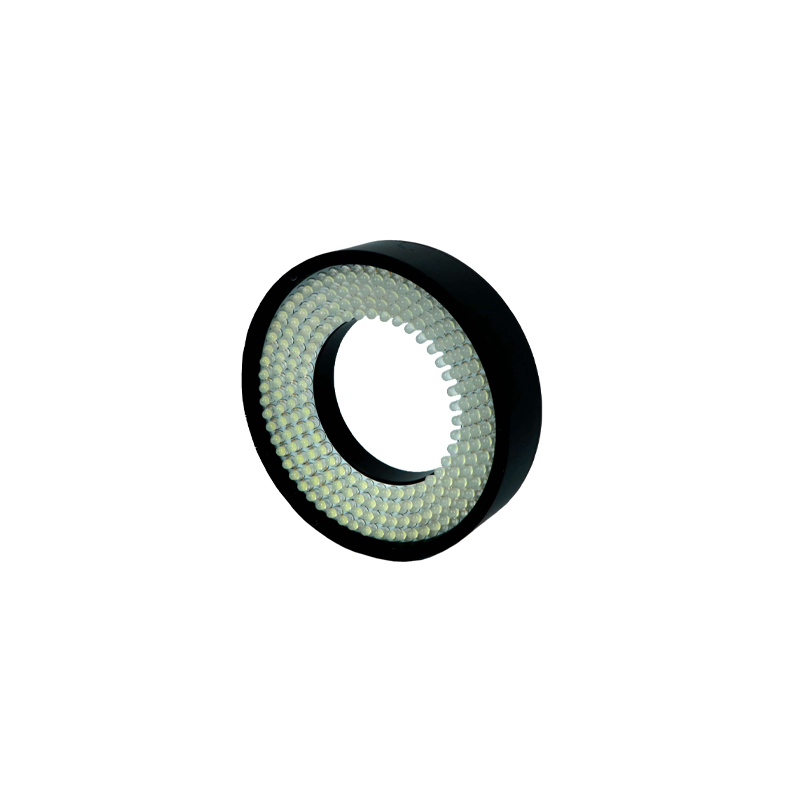

| GL-DR9050IR-24 | Infrared | 7.7W | 850nm |
|||||||
照度曲線和亮度分佈
