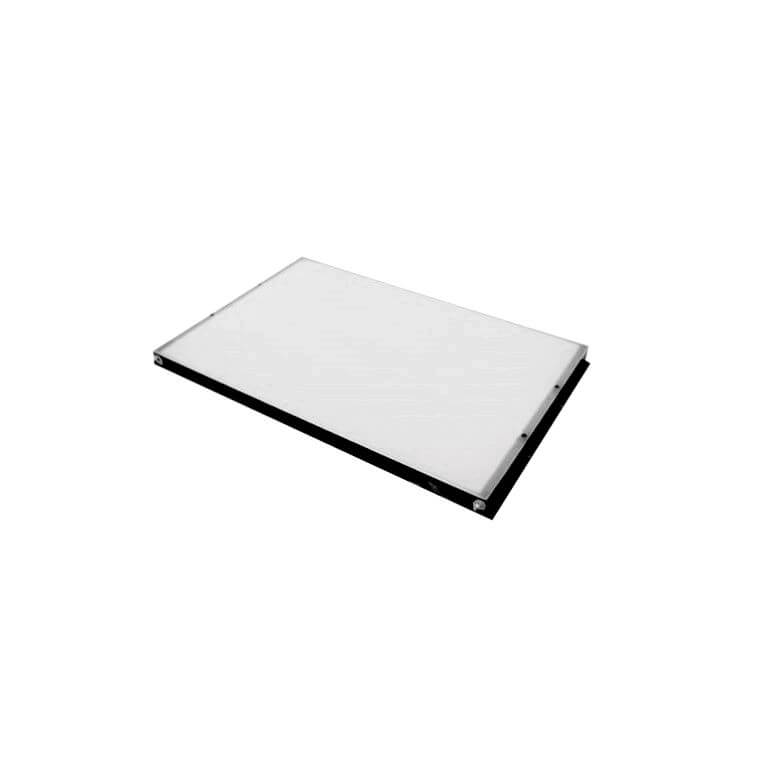

ADM-180/225 Backlight Illumination – Infrared
_副本2.jpg)
_副本2.jpg "ADM-180/225 Backlight Illumination – Infrared")
Product Introduction
Dimensions
| Material | Aluminum (Main Part) |
|---|---|
| Surface Treatment | Anodic Treatment (Black, Main Part) |
| Unit | mm |
| Tolerance | +-0.3 |
| Connector Type | M12 A-Coding 4P Cable End Male |
| Connector Pin Def |  |
Note: Owing to the different series of lights, the length of wires is about 25 - 30cm.
Guarantee
Under the normal use of the product, it will keep more than 50% of its initial brightness within a year from the date of delivery.
Specification
| Input Voltage | DC 24V | Tolerance: +-0.1V |
|---|---|---|
| Max Power Consumption | 33.6W | LED consumption only |
| Operating Condition | Temperature | 0 - 40 C |
| Quantity of LEDs | Humidity | 20 - 80%RH |
| Cooling Method | Natural Air Cooling | |
| 1200 pieces |

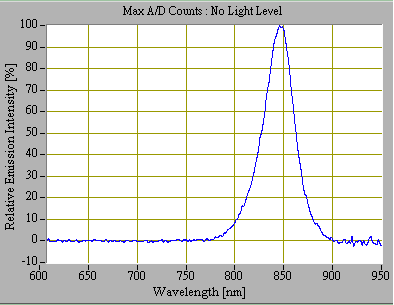

Specification of LED
Chip Source: NICHIA, CREE, OSRAM, SAMSUNG, or PHILIPS
