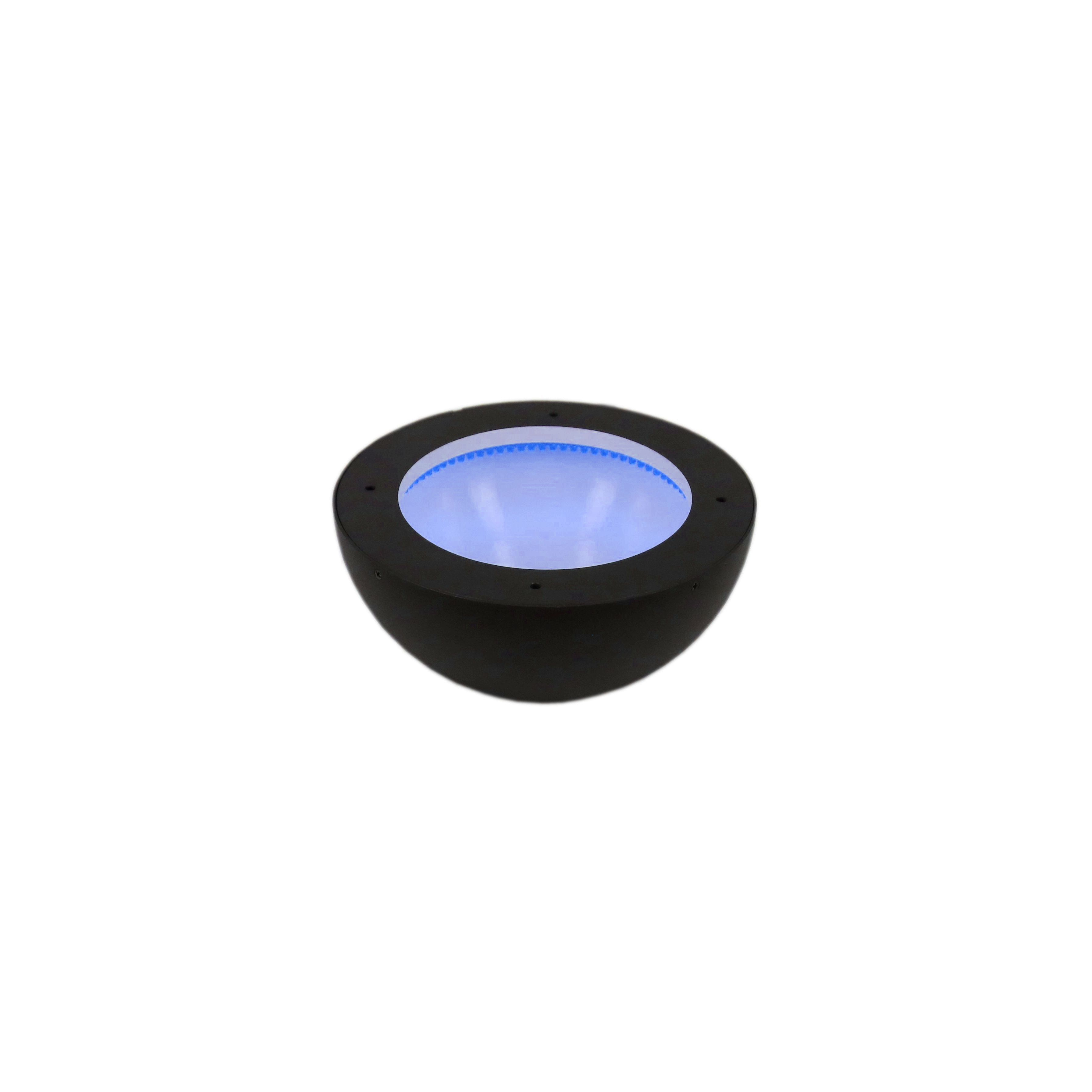

ADO-156/108 Dome Illumination – Blue
_副本1.jpg)
_副本1.jpg "ADO-156/108 Dome Illumination – Blue")
Product Introduction

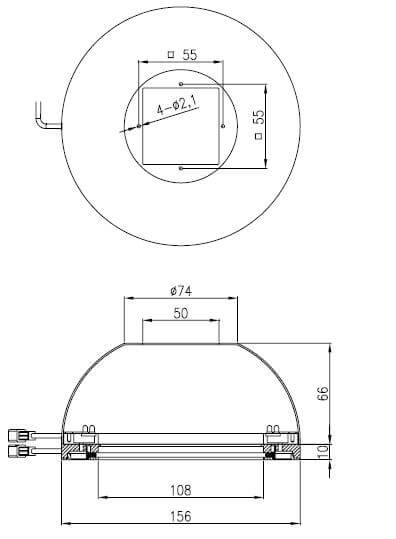

Dimensions
| Material | Aluminum (Main Part) |
|---|---|
| Surface Treatment | Anodic Treatment (Black, Main Part) |
| Unit | mm |
| Tolerance | +-0.3 |
| Connector Type | J.S.T connector Sm type-3Pin |
| Connector Pin Def |  |
Note: Owing to the different series of lights, the length of wires is about 25 - 30cm.
Guarantee
Under the normal use of the product, it will keep more than 80% of its initial brightness within a year from the date of delivery.
Specification
| Input Voltage | DC 24V | Tolerance: +-0.1V |
|---|---|---|
| Max Power Consumption | 16.32W | LED consumption only |
| Operating Condition | Temperature | 0 - 40 C |
| Quantity of LEDs | Humidity | 20 - 80%RH |
| Cooling Method | Natural Air Cooling | |
| 272 pieces |
Specification of LED
Chip Source: NICHIA, CREE, OSRAM, SAMSUNG, or PHILIPS

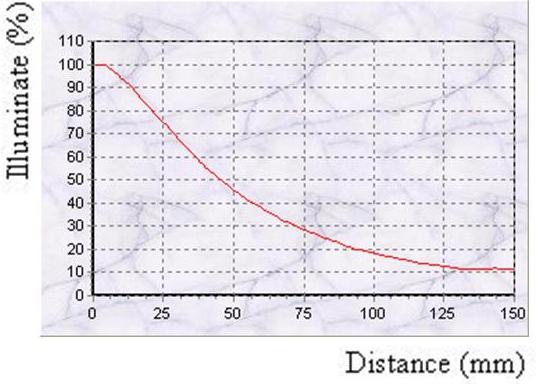

Illuminance Curve
Brightness Distribution
