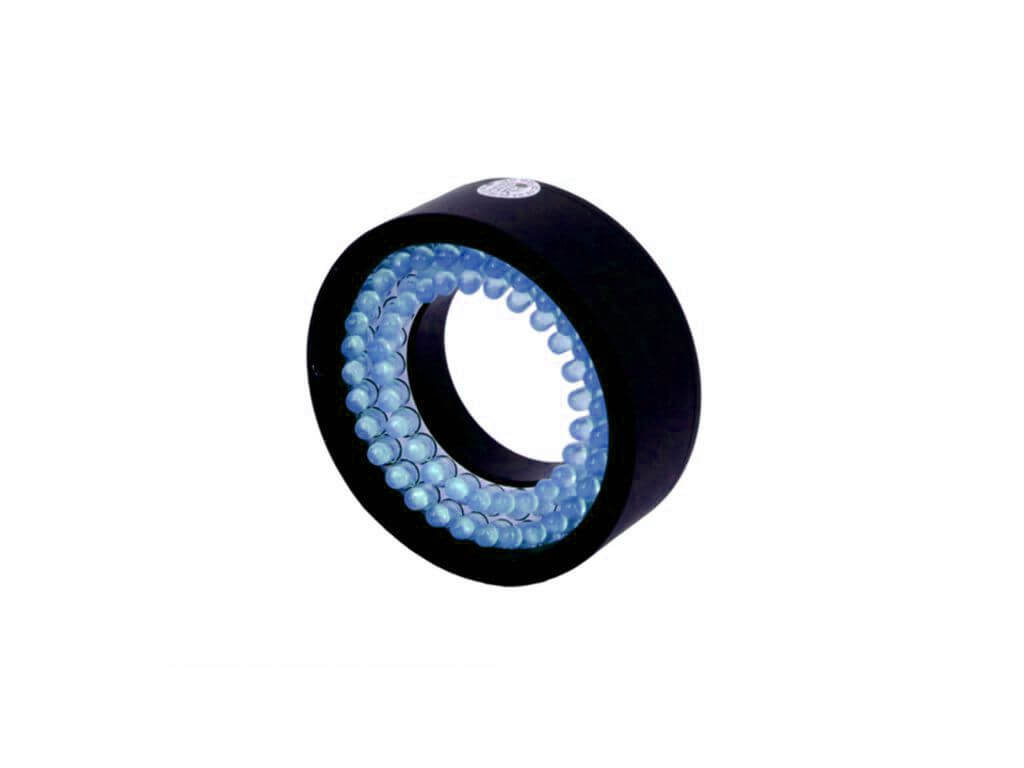

DR-50/28Direct Ring Illumination – Blue
Product Introduction

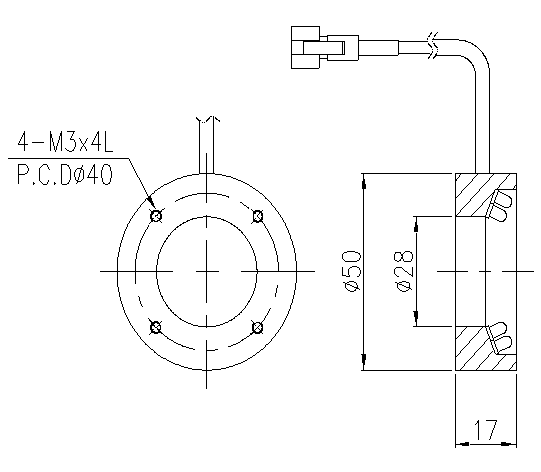

Dimensions
| Material | Aluminum (Main Part) |
|---|---|
| Surface Treatment | Anodic Treatment (Black, Main Part) |
| Unit | mm |
| Tolerance | +-0.3 |
| Connector Type | J.S.T connector SM type-3Pin |
| Connector Pin Def. |  |
Note: Owing to the different series of lights, the length of wires is about 25 – 30cm.
Guarantee
Under the normal use of the product, it will keep more than 80% of its initial brightness within a year from the date of delivery.
Specification
| Input Voltage | DC 24V | Tolerance: +-0.1V |
|---|---|---|
| Max Power Consumption | 3.36W | LED consumption only. |
| Operating Condition | Temperature | 0 - 40˚C |
| Humidity | 20 - 80%RH | |
| Cooling Method | Natural Air Cooling | |
| Quantity of LEDs | 56 pieces |
Specification of LED
Chip Source: NICHIA, CREE, OSRAM, SAMSUNG, or PHILIPS

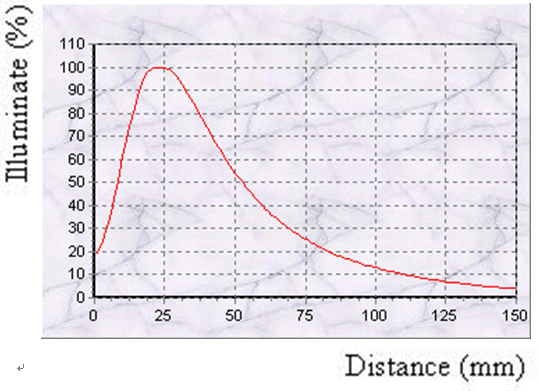

Illuminance Curve

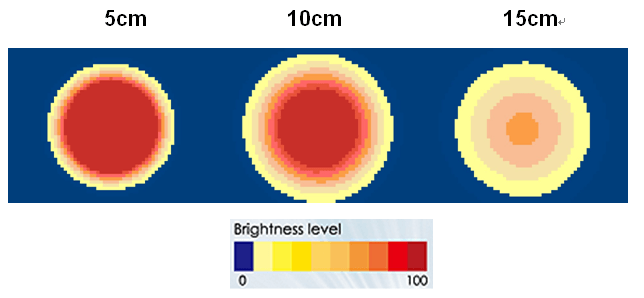

Brightness Distribution for DR5028 Series
