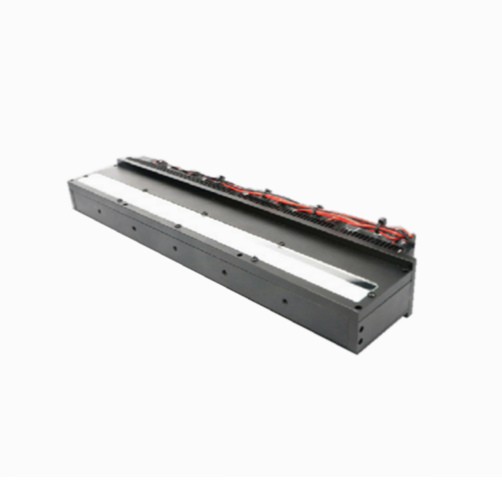

390/20 Fan-Cooling Line Coaxial Illumination - White
Product Introduction
Dimensions
| Material | Aluminum (Main Part) |
|---|---|
| Surface Treatment | Anodic Treatment (Black, Main Part) |
| Unit | mm |
| Tolerance | +-0.3 |
| Connector Type | M12 A-Coding 4P Cable End Male/JST 3PIN |
| Connector Pin Def. |
 |
Note: The length of the cable is about 30cm.
Guarantee
Under the normal use of the product, it will keep more than 80% of its initial brightness within a year from the date of delivery.
Specification
| Input Voltage | 24V max. | Tolerance:+-0.1V |
|---|---|---|
| Max Power Consumption | LED 71W max. Fan 12.5W max. |
|
| Operating Condition | Temperature | 5 - 35˚C |
| Humidity | 30 - 80%RH | |
| Cooling Method | Fan Cooling | |
| Quantity of LEDs | 216 pieces |
