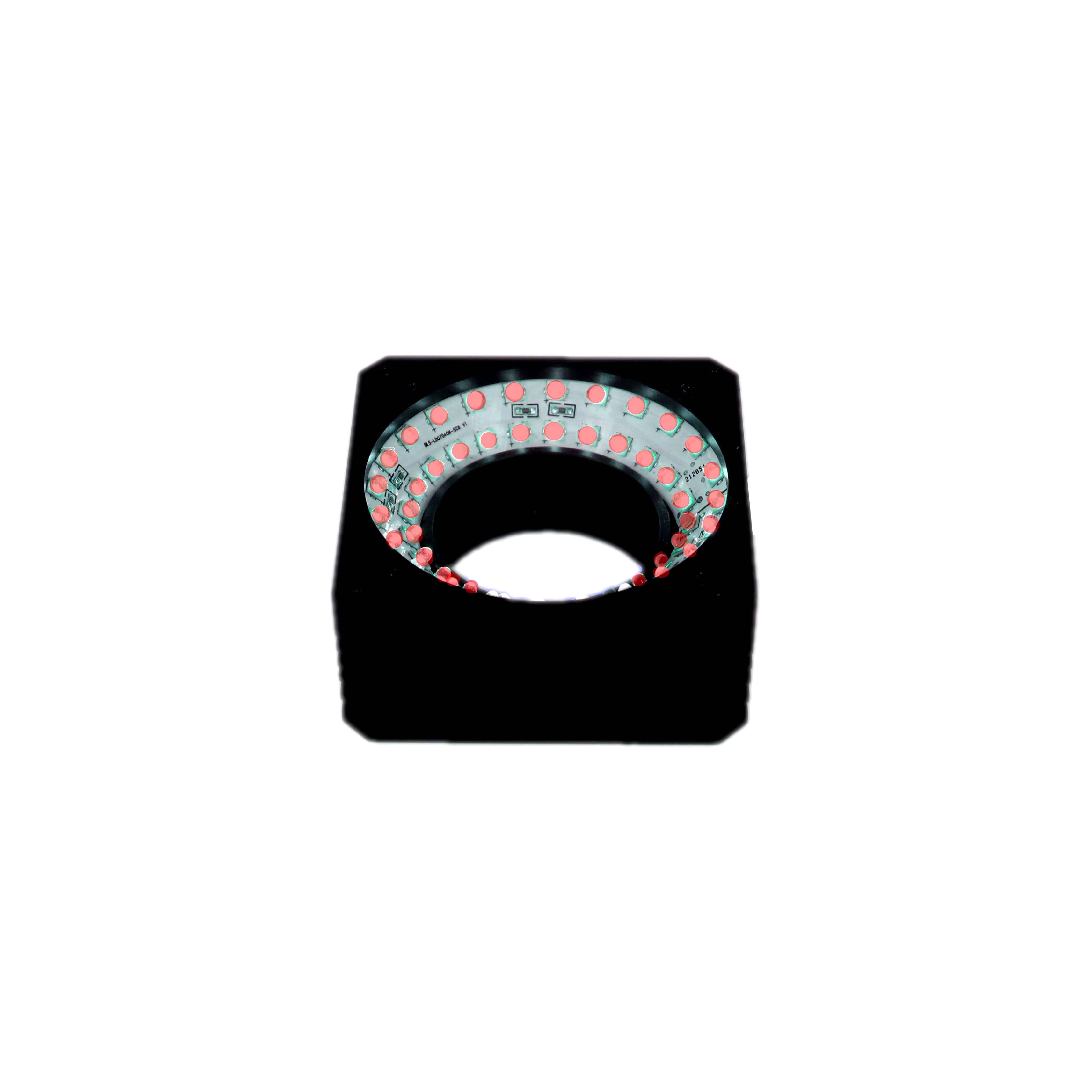

LDQ7040 Low Angle Ring Light - Red
Product Introduction

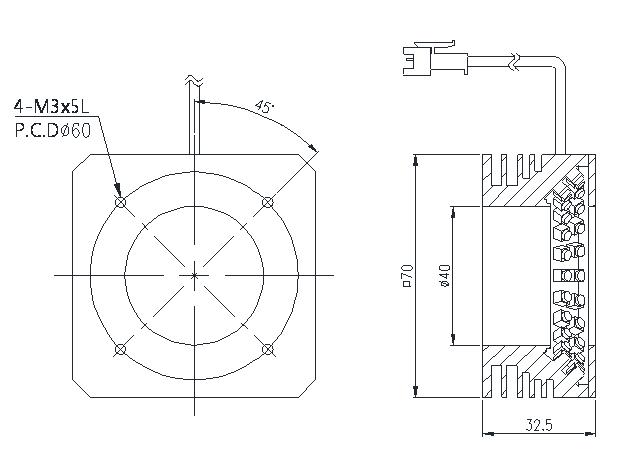

Dimensions
| Material | Aluminum |
|---|---|
| Surface Treatment | Baking Finish (Black) |
| Unit | mm |
| Tolerance | +-0.3 |
| Connector Type | J.S.T connector Sm type-3Pin |
| Connector Pin Def |  |
Guarantee
Under the normal use of the product, it will keep more than 80% of its initial brightness within a year from the date of delivery.
Specification
| Input Voltage | DC 24V | Tolerance: +-0.1V |
|---|---|---|
| Max Power Consumption | 6.05W | LED consumption only |
| Operating Condition | Temperature | 5 - 35 C |
| Quantity of LEDs | Humidity | 30 - 80%RH |
| Cooling Method | Natural Air Cooling | |
| 48 pieces |
Specification of LED
Chip Source: NICHIA, CREE, OSRAM, SAMSUNG, or PHILIPS
