LS4-1000 Line Illumination - White
Product Introduction

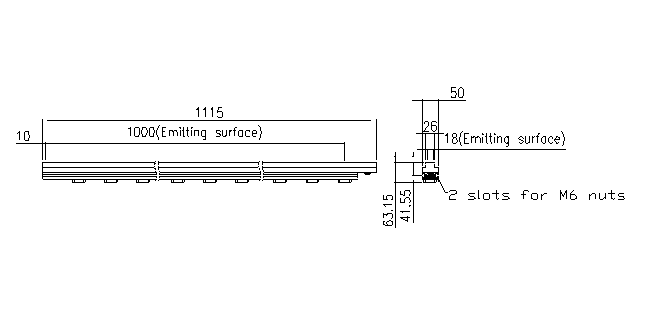

Dimensions
| Material | Steel | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Surface Treatment | Baking Finish (Black) | |||||||||||||||||||
| Unit | mm | |||||||||||||||||||
| Tolerance | +-0.3 | |||||||||||||||||||
| Connector Type | PLT168 connector *2 | |||||||||||||||||||
| Connector Pin Def. |
|
Note: The length of the cable is about 10cm.
Guarantee
Under the normal use of the product, it will keep more than 80% of its initial brightness within a year from the date of delivery.
Specification
| Input Voltage | 2.5A max. | |
|---|---|---|
| Max Power Consumption | 87.5W max. | |
| Operating Condition | Temperature | 5 - 35˚C |
| Humidity | 30 - 80%RH | |
| Cooling Method | Fan Cooling | |
| Quantity of LEDs | 220 pieces |
