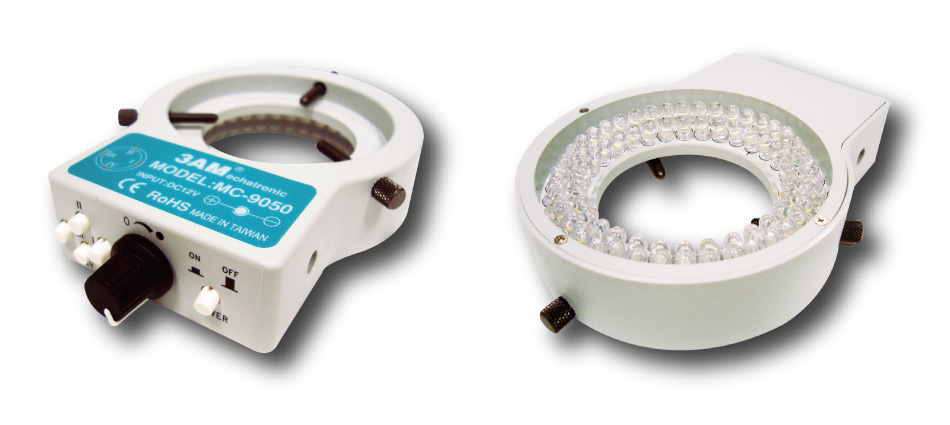

Microscope Illumination-white
Product Introduction

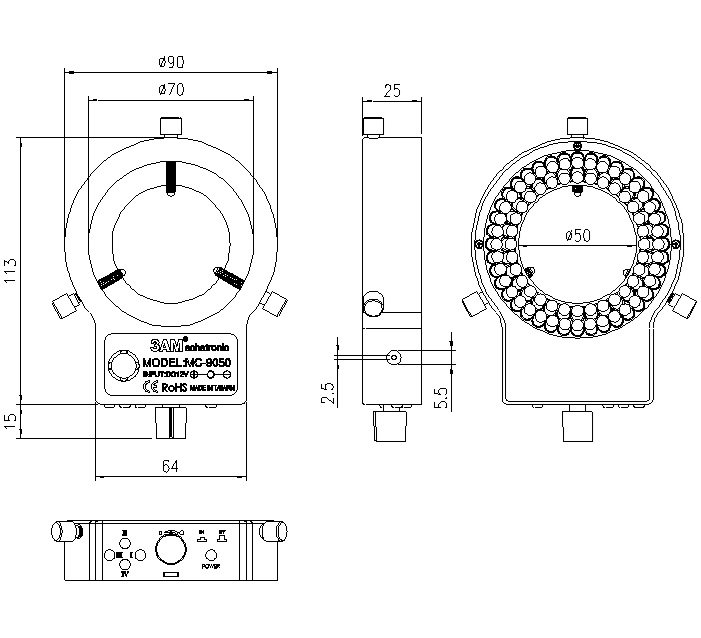

Dimensions
| Material | Plastic (Main Part) |
|---|---|
| Unit | mm |
| Tolerance | +-0.3 |
Guarantee
Under the normal use of the product, it will keep more than 80% of its initial brightness within a year from the date of delivery.
Specification
| Input Voltage | DC 12V | Tolerance: +-0.1V |
|---|---|---|
| Max Power Consumption | 5W | LED consumption only. |
| Operating Condition | Temperature | 0 - 40˚C |
| Humidity | 20 - 80%RH | |
| Cooling Method | Natural Air Cooling | |
| Quantity of LEDs | 72 pieces |

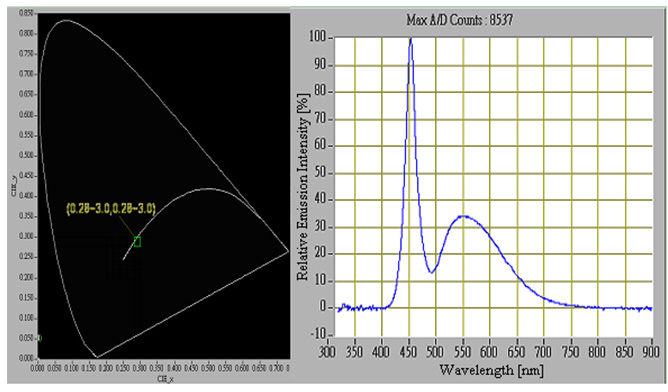

Specification of LED
Chip Source: NICHIA, CREE, OSRAM, SAMSUNG, or PHILIPS
| wavelength | X | 0.28 – 0.30 |
|---|---|---|
| Y | 0.28 – 0.30 |

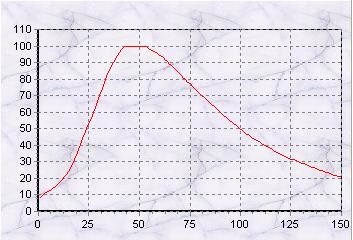

Illuminance Curve
