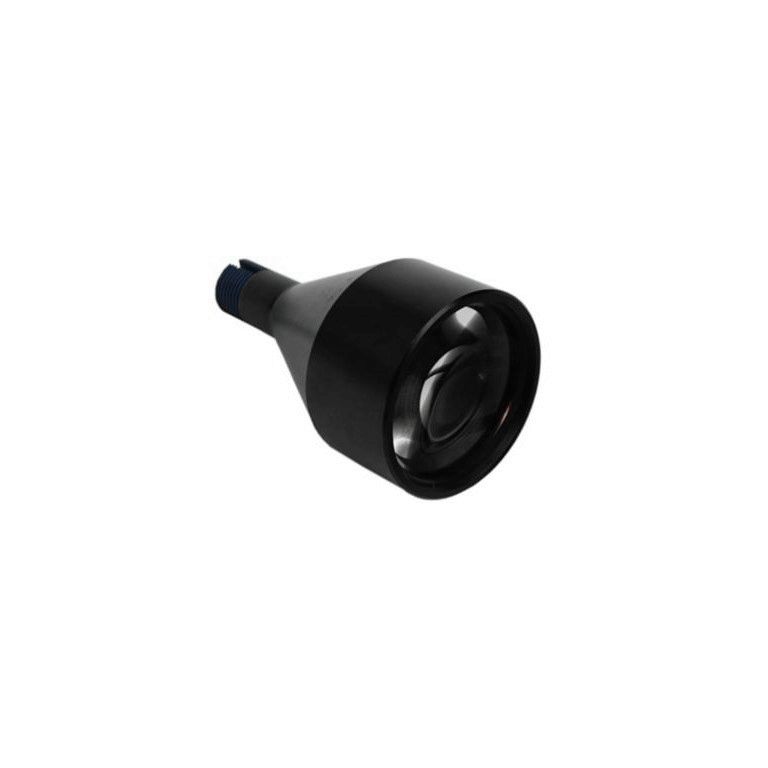

PL2-80 Parallel Illumination – Blue
_副本5.jpg)
_副本5.jpg "PL2-80 Parallel Illumination – Blue")
Product Introduction

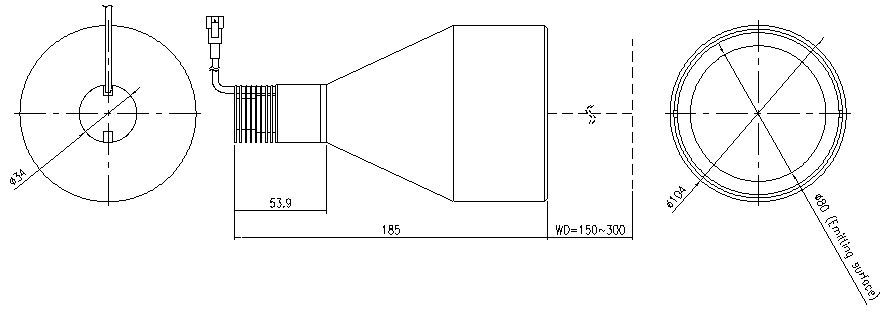

Dimensions
| Material | Aluminum (Main Part) |
|---|---|
| Surface Treatment | Anodic Treatment (Black, Main Part) |
| Unit | mm |
| Tolerance | +-0.3 |
| Connector Type | J.S.T connector Sm type-3Pin |
| Connector Pin Def |  |
Note: Owing to the different series of lights, the length of wires is about 25 - 30cm.
Guarantee
Under the normal use of the product, it will keep more than 80% of its initial brightness within a year from the date of delivery.
Specification
| Input Voltage | 700mA | Tolerance: +-20mA |
|---|---|---|
| Max Power Consumption | 3W | LED consumption only |
| Quantity of LEDs | 1pcs | |
| Beam Diameter | 80mm | |
| Work Distance | 150-300mm | |
| Operating Condition | Temperature | 0 - 40 C |
| Humidity | 20 - 80%RH | |
| Cooling Method | Natural Air Cooling |

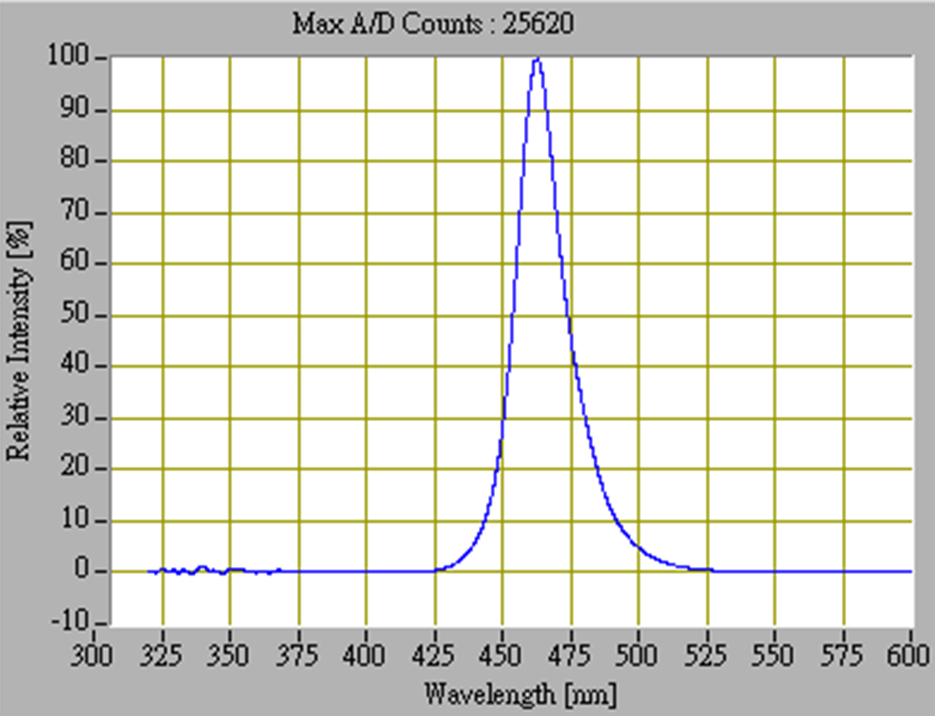

Specification of LED
Chip Source: NICHIA, CREE, OSRAM, SAMSUNG, or PHILIPS

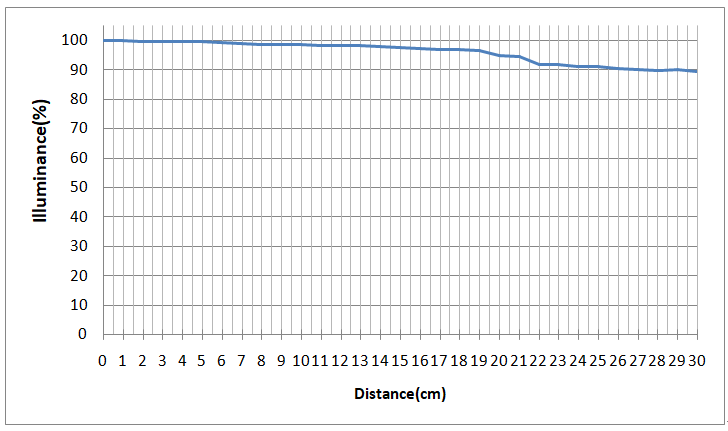

Illuminance Curve
Brightness Distribution
