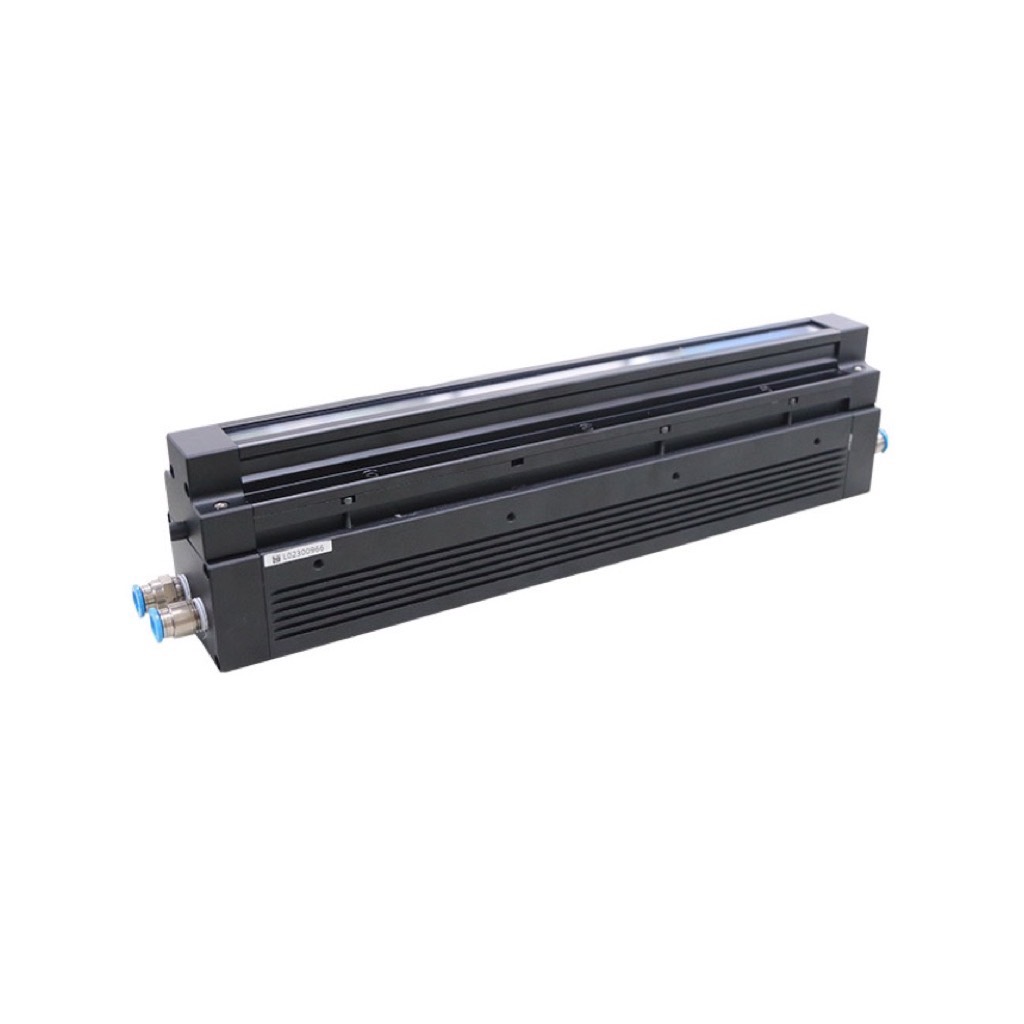

AHLS4-1000 Air-Cooling Line Illumination - White
Product Introduction

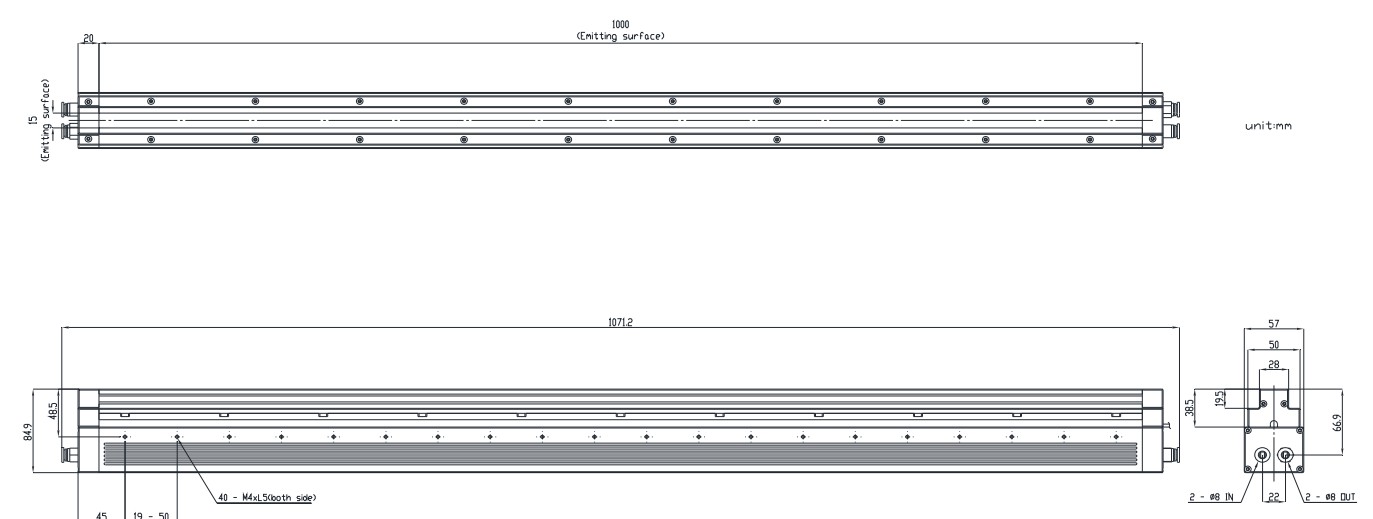

Dimensions
| Material | Al | ||
|---|---|---|---|
| Surface Treatment | Anodic Treatment(Black, Main Part) | ||
| Unit | mm | ||
| Tolerance | +-0.3 | ||
| Connector Type | PLT168 Connector | ||
| 2D Drawing | Click Here | ||
| Connector Pin Def. |  |
Pin | Def. |
| 1 | LED- | ||
| 2 | LED- | ||
| 3 | T+ | ||
| 4 | N/A | ||
| 5 | T- | ||
| 6 | LED+ | ||
| 7 | LED+ | ||
| 8 | N/A | ||
| Tube Fitting Def. | Fitting Type | Tube O.D. | Tube Material |
| Inlet | Inner Hex. Straight | ø8 | PU |
| Outlet | Outer Hex. Straight | ø8 | PU |
Note:The length of the cable is about 50cm.
Guarantee
Under the normal use of the product, it will keep more than 80% of its initial brightness within a year from the date of delivery.
Specification
| Input Current | 10.0A MAX | |
|---|---|---|
| Max Power Consumption | LED 357.5W MAX | |
| Operating Condition | Temperature | 0-40˚C |
| Humidity | 20 - 80%RH | |
| Cooling Method | Pressed Air Cooling | |
| Quantity of LEDs | 220 pcs | |
| Uniformity ratio | 88+-2% | |
| Illuminance | Above 1000K Lux | WD:0mm |
| Working Distance | 50-100 cm | |
| Pressure of Inlet Air | 4.0-6.0 kg/cm2 | |
| Volumetric Flow of Inlet Air | 4.5-5.0 m3/h | Outlet must be greater than Inlet |
