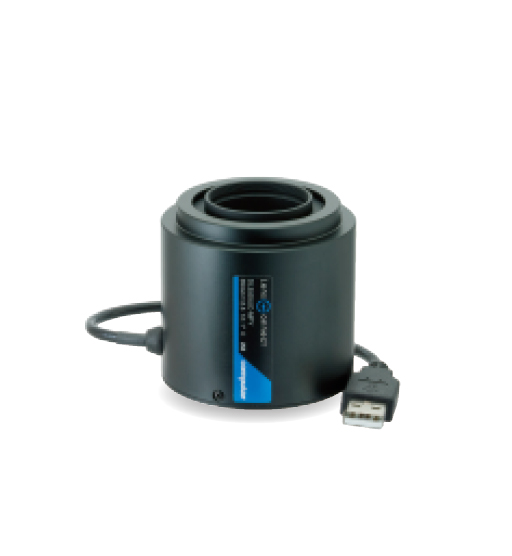

ALN-DL3525UC-MPY
Product Introduction

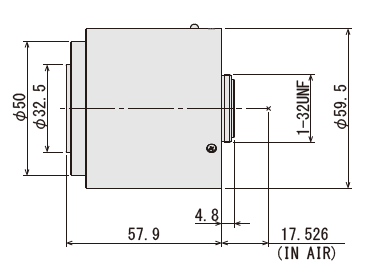

Dimensions
| Focal Length | 35mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Image Format | ø14.4mm | |||||||
| Operation Range | Iris | F2.5-F16.0 | ||||||
| Focus | 0.16m - Inf. | |||||||
| Control | Iris | Motorized | ||||||
| Focus | Motorized | |||||||
| Angle of View | D | 1/1.1'' | 22.5° | 2/3'' | 17.9° | 1/1.8" | 14.7° | |
| H | 18.2° | 14.3° | 11.7° | |||||
| V | 13.4° | 10.8° | 8.8° | |||||
| Operating Temperature | -20°C - +60°C | |||||||
| Optical Distortion | 1/1.1" | 0.0% | 2/3" | 0.0% | 1/1.8" | 0.0% |
| Back Focal Length | 14.3mm (In Air) | |||||
| Flange Back Length | 17.526mm (In Air) | |||||
| Mount | C-Mount | |||||
| Filter Size | M30.5 P=0.5mm | |||||
| Weight | 160g | |||||
| Control Interface | USB2.0 | |||||
| Power mode | Bus powerd(500mA) | |||||
| Connector | USB Type A | |||||
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 1/1.1'' | 2/3'' | 1/1.8" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.034 | - | 332.1 | 243.0 | 260.2 | 195.0 | 212.8 | 159.5 |
| 900 | 0.038 | - | 299.9 | 219.4 | 234.9 | 176.0 | 192.1 | 144.0 |
| 800 | 0.042 | - | 267.6 | 195.7 | 209.6 | 157.1 | 171.4 | 128.5 |
| 700 | 0.048 | - | 235.3 | 172.1 | 184.3 | 138.1 | 150.6 | 112.9 |
| 600 | 0.056 | - | 202.9 | 148.3 | 158.9 | 119.0 | 129.9 | 97.3 |
| 500 | 0.066 | - | 170.4 | 124.5 | 133.4 | 99.9 | 109.0 | 81.7 |
| 450 | 0.073 | - | 154.1 | 112.6 | 120.6 | 90.3 | 98.6 | 73.8 |
| 400 | 0.082 | - | 137.7 | 100.6 | 107.7 | 80.7 | 88.1 | 66.0 |
| 350 | 0.093 | - | 121.2 | 88.5 | 94.8 | 71.0 | 77.5 | 58.1 |
| 300 | 0.108 | - | 104.6 | 76.4 | 81.8 | 61.3 | 66.9 | 50.1 |
| 250 | 0.129 | - | 87.8 | 64.1 | 68.7 | 51.4 | 56.1 | 42.0 |
| 200 | 0.160 | - | 70.8 | 51.7 | 55.3 | 41.4 | 45.2 | 33.9 |
| 190 | 0.168 | - | 67.3 | 49.1 | 52.6 | 39.4 | 43.0 | 32.2 |
| 180 | 0.177 | - | 63.8 | 46.6 | 49.9 | 37.3 | 40.7 | 30.5 |
| 170 | 0.188 | - | 60.3 | 44.0 | 47.1 | 35.3 | 38.5 | 28.8 |
| 160 | 0.200 | - | 56.7 | 41.4 | 44.3 | 33.2 | 36.2 | 27.1 |
| 150 | 0.213 | - | 53.1 | 38.8 | 41.5 | 31.1 | 33.9 | 25.4 |
