ALN-F5026-MPT
Product Introduction

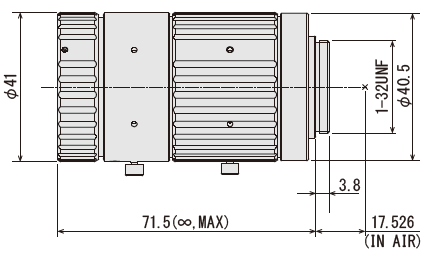

Dimensions
| Focal Length | 50mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:2.6 | |||||||
| Max. Image Format | 19.08mm x 13.03mm (ø23.1mm) | |||||||
| Operation Range | Iris | F2.6-F16.0 | ||||||
| Focus | 0.25m-Inf | |||||||
| Control | Iris | Manual | ||||||
| Focus | Manual | |||||||
| Angle of View | D | 1.4'' | 26.1° | 1.2'' | 21.9° | 1.1" | 20.0° | |
| H | 21.7° | 16.7° | 16.2° | |||||
| V | 14.9° | 14.4° | 11.9° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 1.4" | -0.02 | 1.2" | -0.03 | 1.1" | -0.03 | |
| Back Focal Length | 14.2mm | ||||||
| Flange Back Length | 17.526mm | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M30.5 P=0.5mm | ||||||
| Dimensions | ø41mm x 71.5mm | ||||||
| Weight | 151g | ||||||
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 1.4'' | 1.2'' | 1.1" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.052 | - | 369.2 | 252.1 | 282.5 | 244.4 | 274.6 | 200.8 |
| 900 | 0.058 | - | 331.0 | 226.0 | 253.3 | 219.1 | 246.2 | 180.1 |
| 800 | 0.065 | - | 292.8 | 200.0 | 224.1 | 193.8 | 217.8 | 159.3 |
| 700 | 0.075 | - | 254.6 | 173.9 | 194.9 | 168.6 | 189.4 | 138.5 |
| 600 | 0.088 | - | 216.4 | 147.8 | 165.6 | 143.3 | 161.0 | 117.8 |
| 500 | 0.107 | - | 178.3 | 121.8 | 136.4 | 118.0 | 1326 | 97.0 |
| 450 | 0.120 | - | 159.2 | 108.7 | 121.8 | 105.4 | 118.4 | 86.6 |
| 400 | 0.136 | - | 140.1 | 95.7 | 107.2 | 92.7 | 104.2 | 76.2 |
| 350 | 0.158 | - | 121.0 | 82.6 | 92.6 | 80.1 | 90.0 | 65.8 |
| 300 | 0.187 | - | 101.9 | 69.6 | 78.0 | 67.5 | 75.8 | 55.5 |
| 250 | 0.230 | - | 82.8 | 56.6 | 63.4 | 54.8 | 61.6 | 45.1 |
| 200 | 0.299 | 0.05 | 63.7 | 43.5 | 48.8 | 42.2 | 47.4 | 34.7 |
| 150 | 0.427 | 0.1 | 44.6 | 30.5 | 34.2 | 29.6 | 33.2 | 24.3 |
| 100 | 0.748 | 0.5 | 25.5 | 17.4 | 19.5 | 16.9 | 19.0 | 13.9 |
