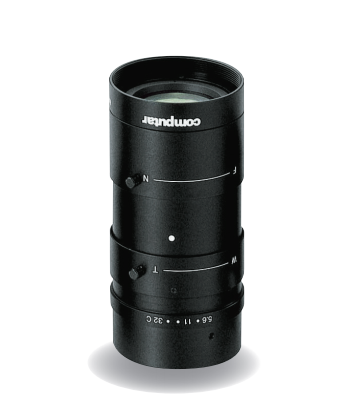

Macro Zoom Lens, 1/2"
Product Introduction
Specification
| Optical Magnification | 0.084x-0.84x | ||||||
|---|---|---|---|---|---|---|---|
| Max. Magnification | 0.084mm - 0.84mm | ||||||
| Max. Aperture Ratio | 1:5.6 | ||||||
| Max. Image Format | 6.4mm x 4.8mm (ø8mm) | ||||||
| Operation Range | Iris | F5.6-F32C | |||||
| Focus | 150mm - 450mm | ||||||
| Control | Iris | Manual | |||||
| Focus | Manual | ||||||
| Zoom | Manual | ||||||
| Angle of View | D | 1/2" | 21.6° - 4.5° | 1/3" | 17.0° - 3.3° | 1/4" | 13.0° - 2.5° |
| H | 18.0° - 3.6° | 13.8° - 2.7° | 10.6° - 2.0° | ||||
| V | 13.8° - 2.7° | 10.6° - 2.0° | 8.0° - 1.5° | ||||
| Operating Temperature | -10°C-+50°C | ||||||
| Optical Distortion | 1/2" | +0.9% at 0.084x |
|---|---|---|
| +1.6% at 0.84x | ||
| Back Focal Length | 23.29mm | |
| Flange Back Length | 17.526mm | |
| Mount | C-Mount | |
| Filter Size | M46.5 P=0.75mm | |

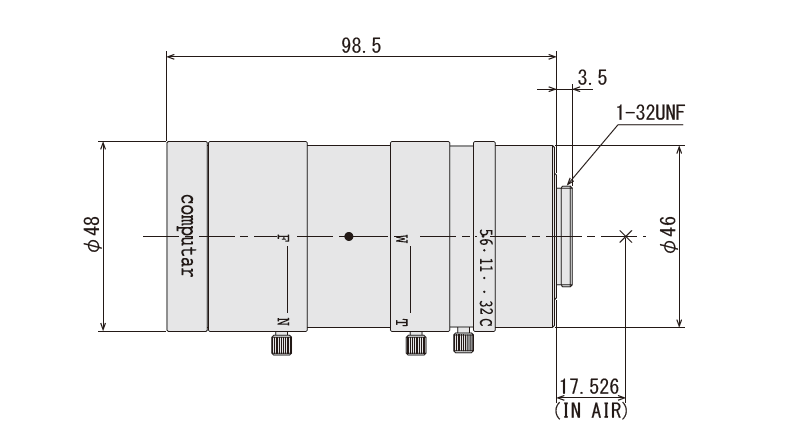

| Dimensions | ø48mm x98.5mm | |
| Weight | 260g | |
Field of View
| Working Distance | Optical Magnification | Field of View(mm) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2'' | 1/3'' | 1/4" | ||||||||||||
| (mm) | H | V | D | Magnification on Monitor |
H | V | D | Magnification on Monitor |
H | V | D | Magnification on Monitor |
||
150 |
Wide | 0.084 | 76.2 | 57.1 | 95.2 | 37.3X | 57.1 | 42.9 | 71.4 | 4.98X | 42.9 | 32.1 | 53.6 | 6.64X |
| Middle | 0.19 | 33.5 | 25.2 | 42.3 | 8.47 | 25.2 | 18.9 | 31.4 | 11.29 | 18.9 | 14.2 | 23.6 | 15.06 | |
| Tele | 0.84 | 7.6 | 5.7 | 9.5 | 37.34 | 5.7 | 4.3 | 7.1 | 49.78 | 4.3 | 3.2 | 5.4 | 66.38 | |
| 200 | Wide | 0.016 | 106.7 | 80.0 | 133.3 | 2.67 | 80.0 | 60.0 | 100.0 | 3.56 | 60.0 | 45.0 | 75.0 | 4.74 |
| Middle | 0.13 | 47.8 | 36.1 | 59.4 | 5.87 | 36.1 | 27.2 | 44.9 | 7.83 | 27.2 | 20.4 | 33.9 | 10.44 | |
| Tele | 0.60 | 10.7 | 8.0 | 13.3 | 26.67 | 8.0 | 6.0 | 10.0 | 35.56 | 6.0 | 4.5 | 7.5 | 47.41 | |
| 250 | Wide | 0.045 | 142.2 | 106.7 | 177.8 | 2.00 | 106.7 | 80.0 | 133.3 | 2.67 | 80.0 | 60.0 | 100.0 | 3.56 |
| Middle | 0.101 | 62.3 | 47.1 | 77.0 | 4.49 | 47.1 | 35.5 | 58.5 | 5.99 | 35.5 | 26.7 | 44.2 | 7.98 | |
| Tele | 0.45 | 14.2 | 10.7 | 17.8 | 20.00 | 10.7 | 8.0 | 13.3 | 26.67 | 8.0 | 6.0 | 10.0 | 35.56 | |
| 300 | Wide | 0.036 | 177.8 | 133.3 | 222.2 | 1.60 | 133.3 | 100.0 | 166.7 | 2.13 | 100.0 | 75.0 | 125.0 | 2.84 |
| Middle | 0.082 | 76.8 | 58.2 | 94.8 | 36.63 | 58.2 | 43.8 | 72.2 | 4.484 | 43.8 | 33.0 | 54.6 | 6.46 | |
| Tele | 0.36 | 17.8 | 13.3 | 22.2 | 16.00 | 13.3 | 10.0 | 16.7 | 21.34 | 10.0 | 7.5 | 12.5 | 28.45 | |
| 350 | Wide | 00.03 | 213.3 | 160.0 | 266.7 | 1.33 | 160.0 | 120.0 | 200.0 | 1.78 | 120.0 | 90.0 | 150.0 | 2.37 |
| Middle | 0.069 | 91.4 | 69.3 | 112.7 | 3.05 | 69.3 | 52.2 | 85.9 | 4.07 | 52.2 | 39.3 | 65.0 | 5.42 | |
| Tele | 0.30 | 21.3 | 16.0 | 26.7 | 13.34 | 16.0 | 12.0 | 20.0 | 17.78 | 12.0 | 9.0 | 15.0 | 23.71 | |
| 400 | Wide | 0.025 | 256.0 | 192.0 | 320.0 | 1.11 | 192.0 | 144.0 | 240.0 | 1.48 | 144.0 | 108.0 | 180.0 | 1.98 |
| Middle | 0.06 | 106.0 | 80.3 | 130.7 | 2.63 | 80.3 | 60.6 | 99.7 | 3.5 | 60.6 | 45.6 | 75.4 | 4.67 | |
| Tele | 0.25 | 25.6 | 19.2 | 32.0 | 11.11 | 19.2 | 14.1 | 24.0 | 14.82 | 14.1 | 10.8 | 18.0 | 19.76 | |
| 450 | Wide | 0.022 | 290.9 | 218.2 | 363.6 | 0.98 | 218.2 | 163.6 | 272.7 | 1.30 | 163.3 | 122.7 | 204.5 | 1.74 |
| Middle | 0.05 | 120.7 | 91.5 | 148.7 | 2.31 | 91.5 | 69.0 | 113.5 | 3.08 | 69.0 | 51.9 | 85.9 | 4.1 | |
| Tele | 0.22 | 29.1 | 21.8 | 36.4 | 9.78 | 21.8 | 16.4 | 27.3 | 13.04 | 16.4 | 12.3 | 20.5 | 17.38 | |
