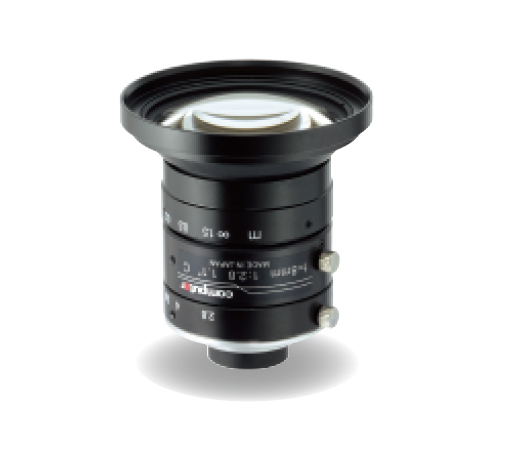

ALN-V0828-MPY2

Model :
ALN-V0828-MPY2
Model P/N :
ALN-V0828-MPY2
Inquiry
Product Introduction

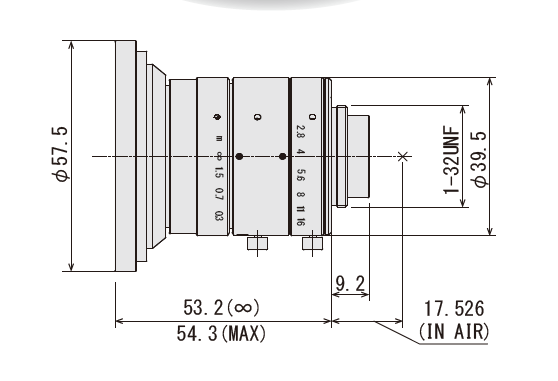

Dimensions
Focal Length 8mm
Max. Aperture Ratio 1:2.8
Max. Image Format 14.2mm x 10.4mm (ø17.6mm)
Operation RangeIris F2.8-F16.0
Focus 0.2m-Inf
ControlIris Manual
Focus Manual
Angle
of
View		D1.1'' 93.9° 1'' 89.3° 2/3" 69.0°
H 83.0° 77.3° 57.3°
V 66.0° 61.7° 44.2°
Operating Temperature -10°C - +50°C
proimages/Computar_Lens/MPY2-24MP/ALN-V0828-MPY2-尺寸圖.png
Optical Distortion 1.1" -0.6% 1" -1.7% 2/3" -2.8%
Back Focal Length 8.6mm
Flange Back Length 17.526mm
Mount  C-Mount
Filter Size M72 P=0.75mm (with VM0811)*
M67 P=0.75mm (with VM0810)*
Dimensions ø75mm x 54mm
Weight 157g
*There is no filter mount on the top of the lens. When using filters, lens requires VM0811 or VM0810(sold seperately).
Field of View
Working Distance Optical
Magnification		Extension RingField of View
1.1''1''2/3"
(mm) (mm) H V H V H V
1000 0.008 - 1790.8 1310.2 1617.6 1206.7 1103.1 820.5
900 0.009 - 1614.2 1180.9 1458.0 1087.5 994.2 739.5
800 0.010 - 1437.5 1051.4 1298.3 968.3 885.2 658.4
700 0.012 - 1260.1 921.4 1137.9 848.5 775.7 576.9
600 0.014 - 1083.5 792.0 978.3 729.3 666.7 495.9
500 0.016 - 906.4 662.2 818.2 609.8 557.4 414.6
450 0.018 - 817.8 597.3 738.1 550.0 502.8 373.9
400 0.020 - 729.5 532.6 658.3 490.4 448.3 333.3
350 0.023 - 641.0 467.7 578.3 430.7 393.6 292.7
300 0.027 - 552.1 402.6 497.9 370.6 338.8 251.9
250 0.032 - 463.7 337.9 418.0 311.0 284.3 211.3
200 0.039 - 375.6 273.3 338.4 251.6 229.9 170.9
150 0.050 0.2 287.1 208.5 258.4 191.9 175.3 130.3
100 0.071 0.2 198.5 143.7 178.4 132.2 120.8 89.7
