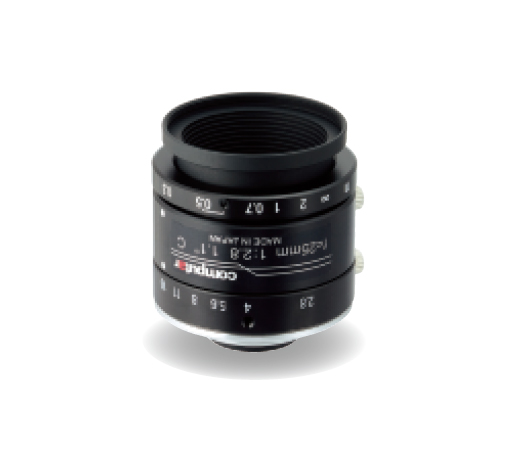

ALN-V2528-MPY
Product Introduction

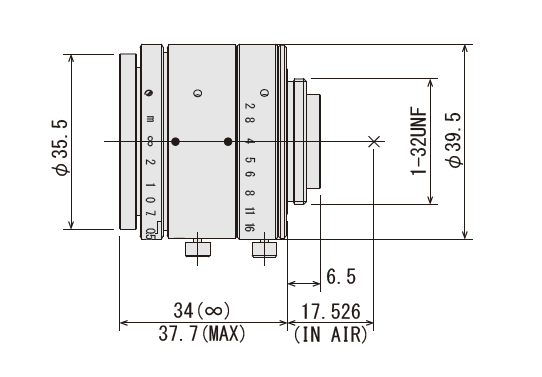

Dimensions
| Focal Length | 25mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Max. Aperture Ratio | 1:2.8 | |||||||
| Max. Image Format | 14.2mm x 10.4mm (ø17.6mm) | |||||||
| Operation Range | Iris | F2.8-F16.0 | ||||||
| Focus | 0.3m-Inf | |||||||
| Control | Iris | Manual | ||||||
| Focus | Manual | |||||||
| Angle of View | D | 1.1'' | 38.7° | 1'' | 35.4° | 2/3" | 24.8° | |
| H | 31.7° | 28.7° | 20.0° | |||||
| V | 23.5° | 21.7° | 15.0° | |||||
| Operating Temperature | -10°C - +50°C | |||||||
| Optical Distortion | 1.1" | 0.3% | 1" | 0.2% | 2/3" | 0.1% | |
| Back Focal Length | 11.3mm | ||||||
| Flange Back Length | 17.526mm | ||||||
| Mount | C-Mount | ||||||
| Filter Size | M34.0 P=0.5mm | ||||||
| Dimensions | ø39.5mm x 34mm | ||||||
| Weight | 78g | ||||||
Field of View
| Working Distance | Optical Magnification | Extension Ring | Field of View | |||||
|---|---|---|---|---|---|---|---|---|
| 1.1'' | 1'' | 2/3" | ||||||
| (mm) | (mm) | H | V | H | V | H | V | |
| 1000 | 0.026 | - | 555.5 | 407.0 | 500.8 | 375.7 | 344.4 | 258.3 |
| 900 | 0.028 | - | 499.0 | 365.6 | 449.9 | 337.5 | 309.3 | 232.0 |
| 800 | 0.032 | - | 442.4 | 324.1 | 398.8 | 299.1 | 274.2 | 205.7 |
| 700 | 0.037 | - | 385.7 | 282.5 | 347.7 | 260.8 | 2239.0 | 179.31 |
| 600 | 0.043 | - | 329.0 | 240.9 | 296.6 | 222.4 | 203.9 | 152.9 |
| 500 | 0.052 | - | 272.2 | 199.3 | 245.3 | 184.0 | 168.6 | 126.5 |
| 450 | 0.058 | - | 243.9 | 178.5 | 219.8 | 164.8 | 151.1 | 113.3 |
| 400 | 0.066 | - | 215.5 | 157.7 | 194.2 | 145.6 | 133.4 | 100.1 |
| 350 | 0.076 | - | 187.1 | 136.9 | 168.6 | 126.4 | 115.8 | 86.9 |
| 300 | 0.090 | - | 158.7 | 116.2 | 143.0 | 107.2 | 98.3 | 73.7 |
| 250 | 0.108 | 0.5 | 131.9 | 96.5 | 118.8 | 89.0 | 81.6 | 61.2 |
| 200 | 0.135 | 1.5 | 105.6 | 77.2 | 95.1 | 71.3 | 65.3 | 48.9 |
| 150 | 0.183 | 2.5 | 78.0 | 57.0 | 70.3 | 52.6 | 48.2 | 36.1 |
| 100 | 0.281 | 5.0 | 50.9 | 37.2 | 45.8 | 34.3 | 31.4 | 23.5 |
