GL-UVCBL56020
Product Introduction
Dimensions
| Material | Steel |
|---|---|
| Surface Treatment | Baking Finish (Black) |
| Unit | mm |
| Tolerance | +-0.3 |
| Connector Type | PLT168 connector |

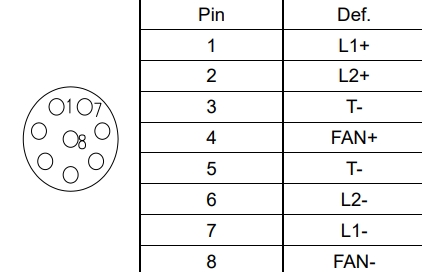

| Connector Pin Def. |  |
Guarantee
Under the normal use of the product, it will keep more than 50% of its initial brightness within a year from the date of delivery.
Specification

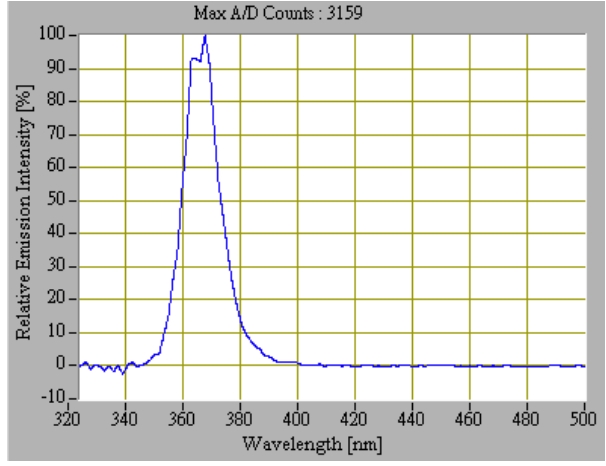

| Wavelength | 365-370nm | |
|---|---|---|
| Operating Current | 35A max | |
| Max Power Consumption | 1400W | |
| Operating Condition | Temperature | 0 - 35˚C |
| Humidity | 20 - 80%RH | |
| Cooling Method | Fan | |
| Emitting Area | 560*20 | L*W (mm) |
Specification of LED
Chip Source: NICHIA, CREE, OSRAM, SAMSUNG, or PHILIPS
Intensity
| Working Distance | Intensity(mw/cm2) | Uniformity of Illumination |
|---|---|---|
| 5 | 1000 | 85% |
| 10 | 900 | |
| 15 | 800 | |
| 20 | 700 |
Note: KUHNAST UV-365A is the measuring instrument. Tolerance of intensity is about 5%.
