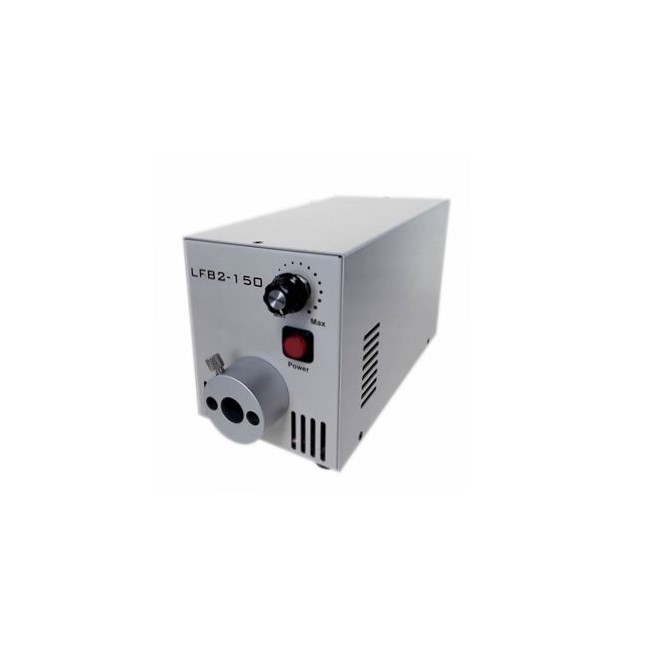

GLC-LFB2-150G
Product Introduction
Dimensions
| Main Voltage | 100-240 VAC |
|---|---|
| Main Frequency | 50/60Hz |
| Connected Load | 70VA |
| Control Methods | Knob /Analog control |
| Output range 5%~100% | |
| Size (depth*width*height in mm) | 210*100*120 |
| Ambient Temperature | 5~35 ℃ |
Appearance Description
| Pin | Definition | Note |
|---|---|---|
| 1-10 | -- | |
| 11 | Fan Error | Error: High |
| 12 | Temp Error | Error: High |
| 13 | G | 0V |
| 14 | Analog Signal | Min: 0V Max: 5V |
| 15 | G | 0V |
Control Methods
Use the slide switch to select control method.
Any control methods can be switched on and off through the "Power Switch" button.
1. Manual Control: Use the knob to adjust the output intensity
2. Analog Control: The output range 0-100% corresponds to the analog signal 0-5V.
Any control methods can be switched on and off through the "Power Switch" button.
1. Manual Control: Use the knob to adjust the output intensity
2. Analog Control: The output range 0-100% corresponds to the analog signal 0-5V.
