GL-UVCP2-100100-365
Product Introduction
Dimensions
| Material | SECC、Al、Glass |
|---|---|
| Surface Treatment | Baking Finish (Black) |
| Unit | mm |
| Tolerance | +-0.3 |
| Connector Type | PLT168 connector |
| Connector Pin Def. |  |
Guarantee
Under the normal use of the product, it will keep more than 50% of its initial brightness within a year from the date of delivery.
Specification
| Wavelength | 365nm | |
|---|---|---|
| Operating Current | 7.5A max | |
| Max Power Consumption | 360W | |
| Operating Condition | Temperature | 5 - 325˚C |
| Humidity | 30 - 80%RH | |
| Cooling Method | Fan | |
| Emitting Area | 106x106 | L*W (mm) |
Specification of LED
Chip Source: NICHIA, CREE, OSRAM, SAMSUNG, or PHILIPS

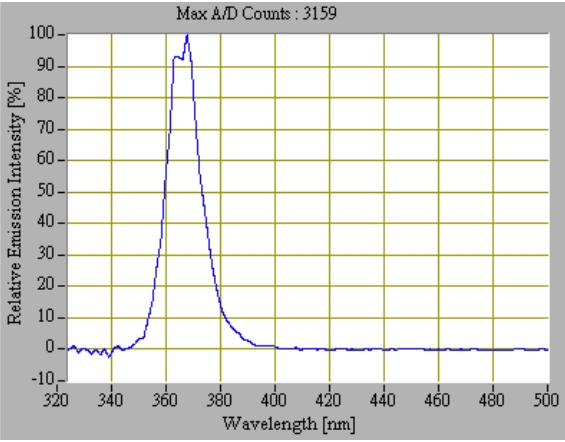

Intensity
